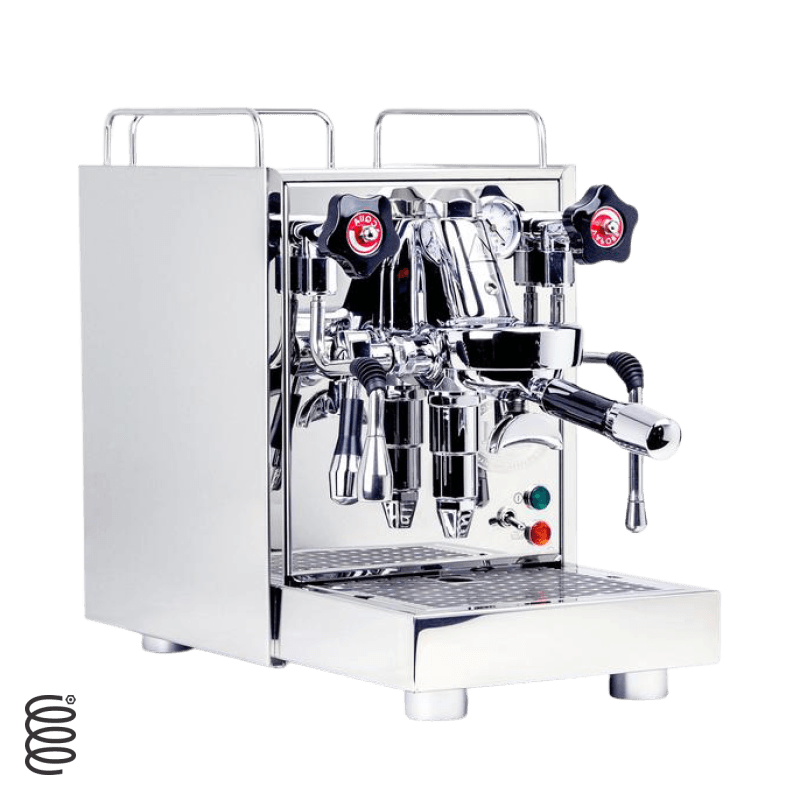

OPEN BOX - ECM Mechanika V Slim Espresso Machine

$1,950.00 $2,899.00

Questions? Call Us Toll Free.

1 780 - 414 - 1200

OPEN BOX - ECM Mechanika V Slim Espresso Machine

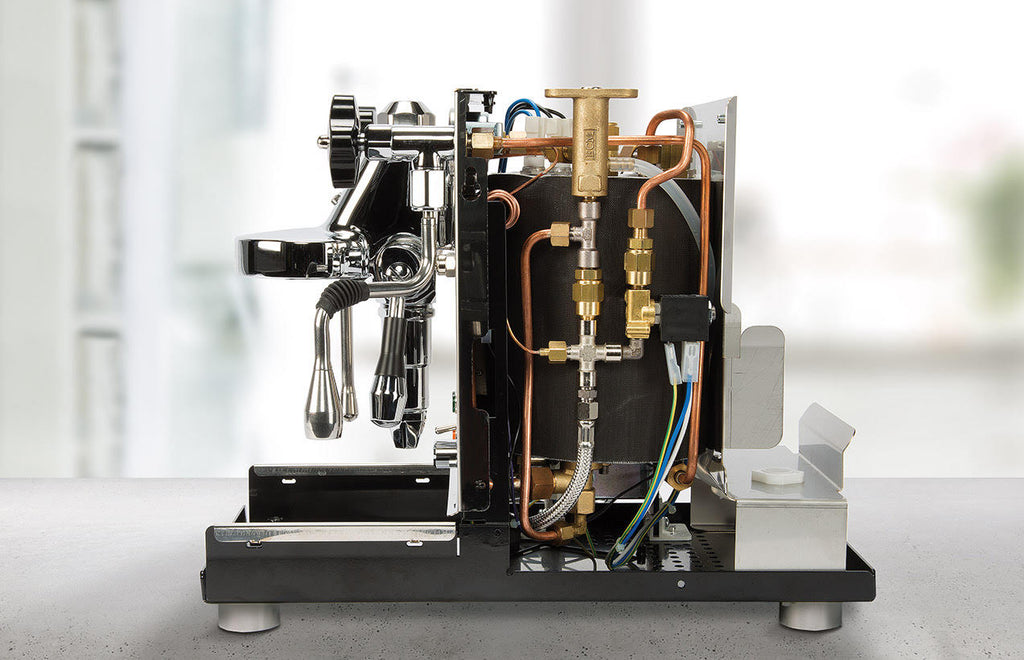

CaffeTech presents the ECM Mechanika V Slim Espresso Machine. With the ECM Mechanika V Slim, the small all-rounder proves that less can really be more with its compact design. The Mechanika V Slim is a compact and modern take on heat exchange espresso machines with a host of cosmetic and mechanical improvements over its previous incarnation. At under 10 inches wide, the Mechanika has slimmed down by more than 2 inches thanks to the vertical re-orienting of the boiler. The new stainless steel boiler has a slightly increased capacity of 2.2L and features thermal insulation for greater energy efficiency. The redesigned interior also resulted in an update to the OPV which is now accessible from the top of the machine and located underneath the reservoir lid.

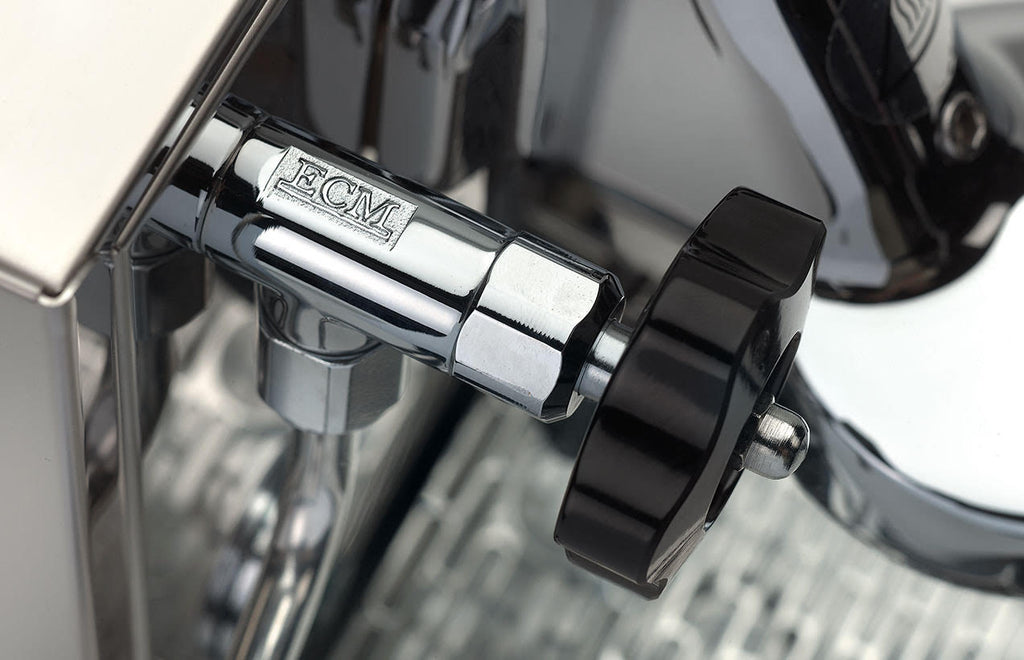

In addition to its slim profile, ECM has upped the ante on the Mechanika’s aesthetics. The ECM Mechanika V Slim Espresso Machine offer by CaffeTech features high-quality steel legs, etched steam and hot water valves and red knobs add touches of elegance previously absent in past designs. Must-haves likes dual brew and steam pressure gauges, a set of angled portafilters and a custom E61 group help to guarantee that good thing really do come in small packages.


Please contact
Sales@caffetech.com for more information on the ECM Mechanic V Slim Espresso Machine and to learn more about other ECM Espresso Machines that can suit your home espresso needs.

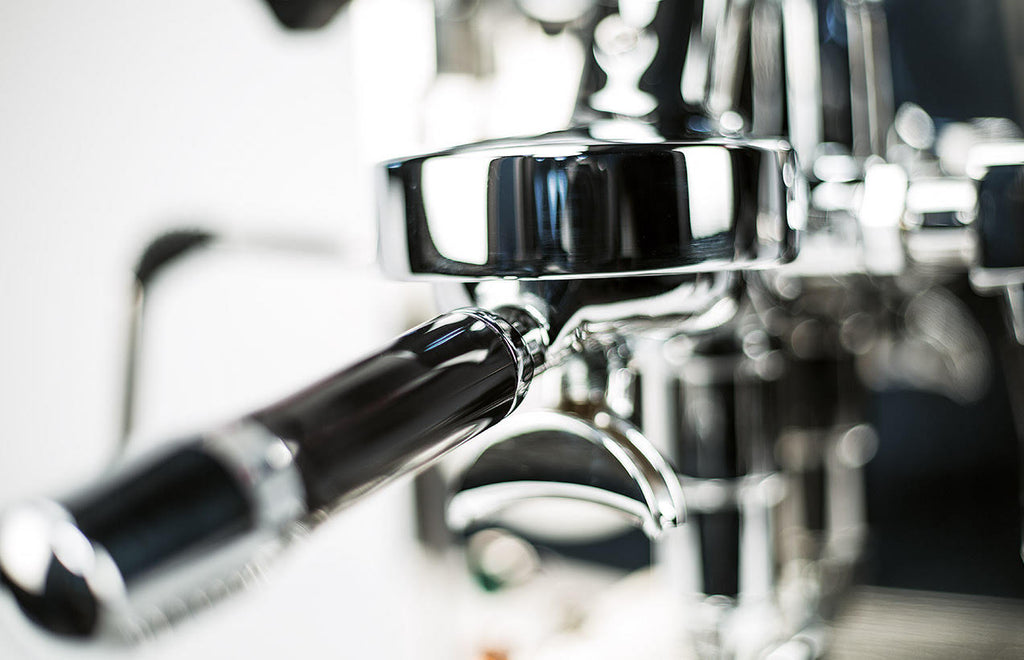

  • E61 Group Head: The ECM Mechanika V Slim features the extremely well-known and widely used E61 group head. Noble design and outstanding technology. Due to its unique construction, water spillings are avoided.
  • Stainless Steel Heat Exchange Boiler: The Mechanika's 2.1L boiler is mounted horizontally by a solid bracket and made of stainless steel for enhanced heat retention and corrosion resistance. The heat exchanger allows the Mechanika to brew and steam at the same time and the boiler is heated by a 1400W element for a consistent brew temperature of approximately 200 degrees Fahrenheit.
  • Professional Gauges: The Mechanika features two professional gauges. The first indicates pump pressure, whereas the second displays boiler pressure. Both are great feedback tool that let you better understand your machine and improve your final results.
  • Vibratory Pump: The ECM Mechanika V Slim features a vibratory pump that delivers even pressure, is easily adjustable, and is very durable.
  • Large Water Tank: The large water reservoir holds 2.8L of water.
  • Large Drip Tray: Drip tray with even more capacity and more space - even for big cups. Creates more convenience for coffee preparation avoiding annoying spillings on the countertop.
  • No Burn Steam and Hot Water Wands: The machine is equipped with no burn steam and hot water wands that can be manipulated without worrying about scolding your hands.
  • Stainless Steel Housing: The Mechanika is housed in a highly durable and very beautiful stainless steel case.
  • Accessories: The ECM Puristika comes with a single and double spout portafilter, a single, double and blind basket, metal tamper, cleaning brush, silicone tube for water filter and a detailed manual.
Width 9.8 in (248.9 mm)
Depth 17.5 in (444.5 mm)
Height 15.5 in (393.7 mm)
Weight 55.1 lbs (25 kg)
Boiler Capacity 0.55 gal (2.1 L)
Water Tank Capacity 0.74 gal (2.8 L)
Voltage 110/120 V
Wattage 1400 W
Boiler Type Heat Exchange
Water Source Water Tank
Pump Type Vibratory
