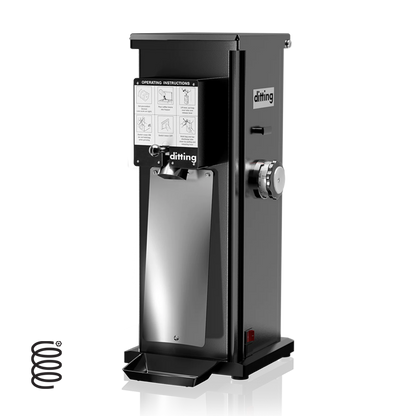

Ditting 1403 Grinder

CaffeTech Canada presents the Ditting 1403 Grinder. Built to Last with dual capacitor motor that charges up the massive 140 mm grinding flat burr disks. In the Ditting product portfolio for countless years and with very few renditions of its current style, the Ditting 1403 acts perfectly in roaster coffee bars where grinding bags of coffee are ongoing and the demand of high production grinding is necessary.

The Ditting 1403 offered through CaffeTech have specialty burrs that are unique to Ditting and offer the user a wide range of grinding styles that can meet a variety of consumer requirements. The Ditting 1403 has wear-resistant steel burrs, aroma saving consistent grinding and stepless grind adjustment.

Complete with manual knocker and bag shaker, the vertical design of the Ditting 1403 provides very low retention. Easy to clean and simple to operate please contact Sales@caffetech.com for more information on the Ditting 1403 and to learn more about other Ditting grinders that can suit your professional coffee bar needs.

Specially developed burrs allow high grinding capacity for all grind adjustment steps
Wear-resistant steel burrs
Aroma saving consistent grinding
Stepless grind adjustment
Minimal retention of coffee residues left inside the slide thanks to the manual knocker
Bag shaking unit ensures an optimal filling of the bags
Very easy to maintain and to clean

Country of Origin:	Germany
Burr Material:	Wear-Resistant Steel
Burr Size:	140 mm
Burr Life:	35,000 lbs
Hopper Capacity:	2.4 lbs
Grind Speed:	2,200 g/min
RPM:	1400 (50Hz)
Power:	200-240V/2000W/10A/3 Phase
Plug Type:	L15-20P
Motor:	2.7HP
Dimensions:	34 in. (H) x 12.5 in. (W) x 16 in. (D)
Weight:	88 lbs

Ditting Grinder Comparison Chart

Model:	807 Retail	807 Filter	807 Lab Sweet	KR1203 Retail	KR1403 Retail	KFA1403 Retail	KFA1403 Industrial
Application:	Retail bag grinding, up to 30lbs per day	Retail bag & batch brew basket grinding, up to 30lbs per day.	Retail bag grinding & single dosing for cupping, pour over or espresso, up to 30lbs per day	Retail bag grinding, up to 60lbs per day	Retail bag grinding, up to 100lbs per day	Roasting facilities, up to 100lbs per day.	Roasting facilities, up to 100lbs per day.
Hardware:	Vibrating plate	Adjustable forks & slide chute	Folding platform, metal grounds catch	Vibrating plate	Vibrating plate	Extended chute, slide gate	Extended chute, built-in shutoff valve
Grind Size Range:	130µm-1,400µm	130µm-1,400µm	100µm-1,200µm	300µm-900µm	200µm-1,100µm	200µm-1,100µm	200µm-1,100µm
Output (lbs/min/800µm):	2	2	2	5	8	8	8
Burr Lifespan (lbs):	5,500+	5,500+	15,000+	15,000+	15,000+	15,000+	15,000+
Hopper Capacity (lbs):	1.1	1.1	1.1	2.4	2.4	2.4	22
Duty Cylcle:	45 Sec On/180 Sec Off	45 Sec On/180 Sec Off	45 Sec On/180 Sec Off	Continuous run	Continuous run	Continuous run	Continuous run
Power:	120v, 60hz, Single Phase, 6A	120v, 60hz, Single Phase, 6A	120v, 60hz, Single Phase, 6A	120v, 60hz, Single Phase, 13A	220v, 60hz, Three Phase, 10A	220v, 60hz, Three Phase, 10A	220v, 60hz, Three Phase, 10A
Dimensions WxDxH (inches):	9 x 14 x 27	9 x 14 x 27	9 x 14 x 27	12 x 16 x 34	12 x 16 x 34	12 x 16 x 34	13 x 16 x 29

Ditting 1403 Brochure

Ditting Product Range
