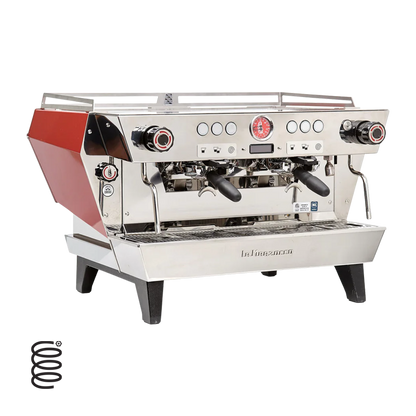

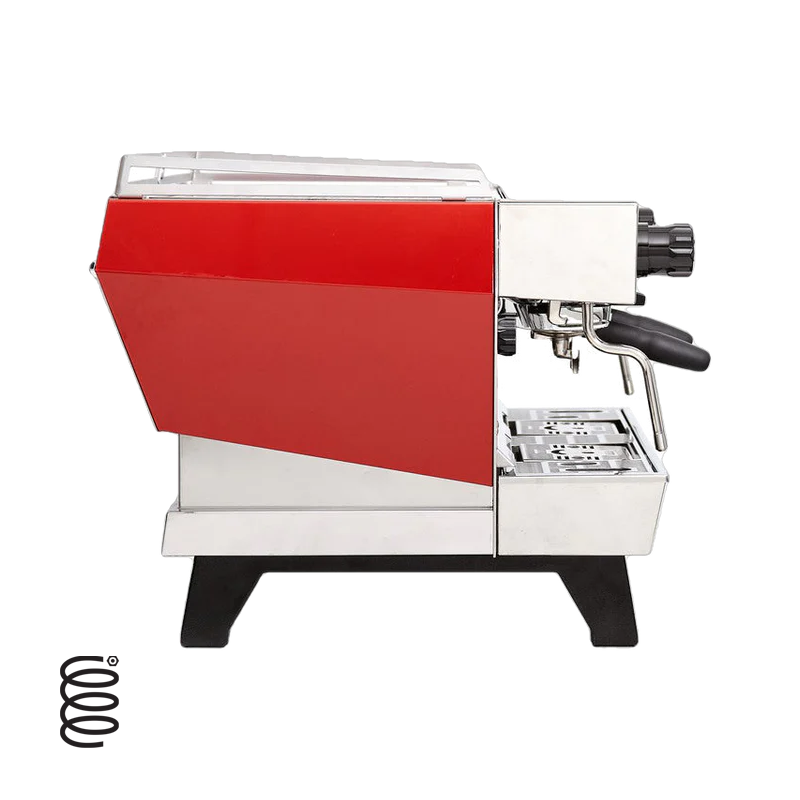

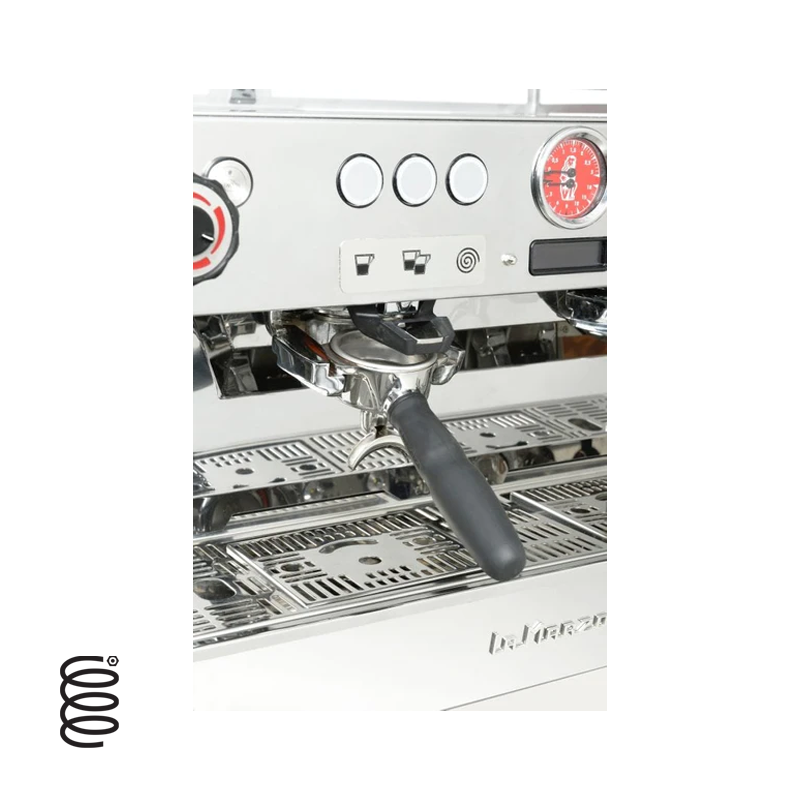

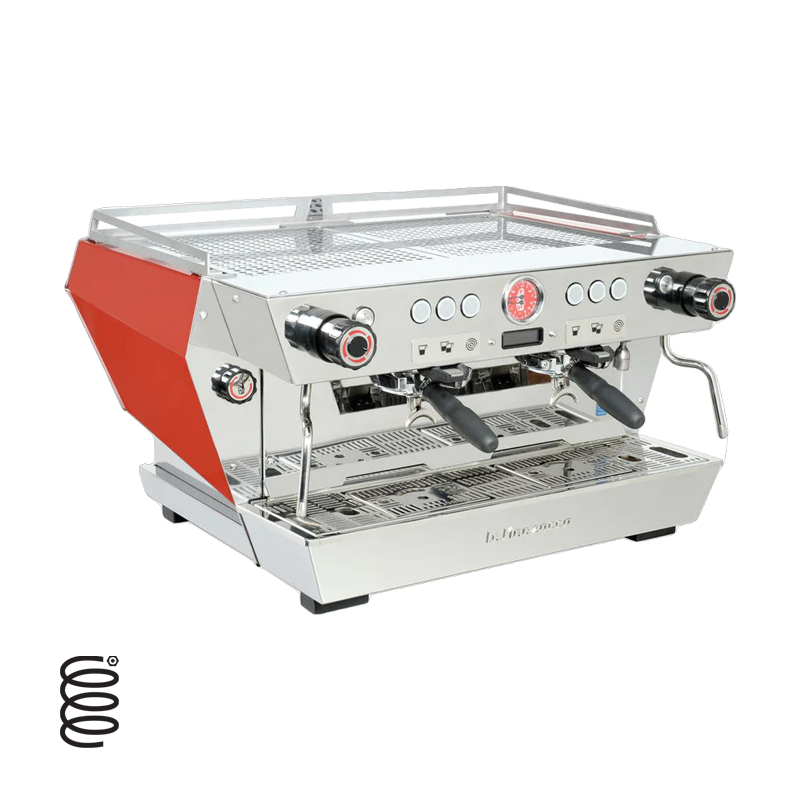

La Marzocco KB 90 Auto Brew Ratio ABR 2 GROUPS


Questions? Call Us Toll Free.

1 780 - 414 - 1200

La Marzocco KB 90 Auto Brew Ratio ABR 2 GROUPS

The KB90 ABR: Auto Brew Ratio that provides the user brewing parameters by weight as opposed to Volume for determining beverage dosing.

CaffeTech Canada presents The La Marzoco KB90 which  Is the latest la Marzocco technologically advanced espresso coffee machine. Complete with straight in locking portafilter design, the KB 90 is designed for high-volume coffee bars and designed in mind to eliminate repetitive stress injuries  from the BARISTA.

Deriving the Front Controls directly from the La Marzocco Linea PB - the similarities of the controls provided a simple graduation for La Marzocco Aficionado who insists on brand loyalty when upgrading the Primary coffee Bar Espresso Machine.

The machine comes with programmable independent program pours  that have independent programming for each button.  Furthermore flashing and steady lights on the Brew buttons allow the user a firm understanding when the Brew water temperature has been reached.

Complete with saturated brew group technology, PID control, independent brew Boilers , the La Marzocco KB90 also has A programmable automatic brew steam flush design that cleans the group head dispersion screen after every coffee is extracted and does so Immediately after the brewing process is completed.

Best of All , the La Marzocco KB 90 features some preventative maintenance designs with the introduction of Steam valve shutoffs  to allow collapse of the Steam Valves that allows service of the Machine without  interrupting Service . Furthermore, The locking portafilters are far gentler on the portafilter gaskets requiring less maintenance and replacement over time.

KB90 is designed to create an efficient work environment and has also been conceived to make it easier for maintenance. Aesthetically, the body echoes the curves of the iconic Marzocco Lion shield with a retro shape, while celebrating the recent 90th anniversary with a festive red color.


CaffeTech Canada offers The La Marzocco KB90 is available in 3 Configuration:

1. The KB90 AV: the KB90 AV delivers the most stable brewing platform thanks to its thermal stability system and individual coffee boilers. Performance Touch Steam Wands improve the machine’s ergonomics remaining always cool to the touch. Barista-friendly electronics make it easy to change settings, program the machine, update the firmware by USB and provide the user an enjoyable, comfortable and unique experience.

2. The KB90 ABR: the KB90  is available in Auto Brew Ratio that provides the user brewing parameters by weight as opposed to Volume

Contact CaffeTech Canada to Learn more about the La Marzocco KB90 Series and to assist you in choosing the Machine model that suits your business

Dual boiler system
Separate boilers optimize espresso brewing and steam production.

Independent brew boilers
Separate boilers for each group head allow barista to optimize temperature for individual coffees.

PID temperature controller
Allows you to electronically control coffee and steam boiler temperature.

Saturated group design
Ensure unsurpassed thermal stability, shot after shot.

Thermal stability system
Brew water is pre-heated before entering the boiler for increased temperature stability.

Steam flush
Keeps the group clean with an automatic burst of steam and a flush of hot water between extractions.

Pro touch steam wands
High performing steam wands that are cool to the touch.

Easy rebuild steam valve
Engineered so the valve can be serviced directly from the front of the machine without needing to be removed.

Hot water economizer
Enables you to fine-tune the tap water temperature for rinsing.

Digital display
Intuitive programming makes it easy to adjust machine parameters.

Barista lights
LED lighting allows you to focus on your extraction and the cup.

Auto brew ratio/drip prediction
Precision scales incorporated into the drip tray improve beverage consistency by stopping the extraction based on mass. The machine uses an algorithm called Drip Prediction to improve shot accuracy and ease of dialing in.

2-Group 3-Group
Height 20.75" 20.75"
Width 32" 41.5"
Depth 24.5" 24.5"
Weight 170 lbs 223 lbs
Voltage (VAC, Φ, Hz) 208-240, 1, 60 208-240, 1, 60
Element Wattage 5400W 7300W
Amp Service Required 30A 50A
Steam Boiler Capacity 7L 11L
Coffee Boiler Capacity 1.3Lx2 1.3Lx3
