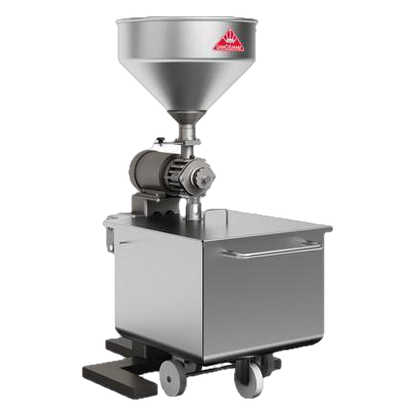

DK15 LH Industrial Grinder



Mahlkonig has been producing hand-made electrical grinders and graters since 1924 and each and every creation of Mahlkonig, undoubtedly reflects the perfect marriage of form and function.


- small space requirement
- movable container for the ground product
- tight discharge chute for dustreduced grinding

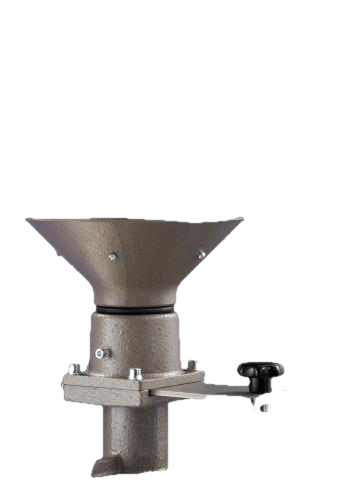

- large hoppers
- lock plate to interrupt the feeding of the product to be ground
- integrated hopper magnets as a protection against metal in the product
- powerful three-phase motors with surface cooling and high starting torque. This makes them very suitable for continuous use
- air cooling of grinder casing
- service-free, constantly greased bearings

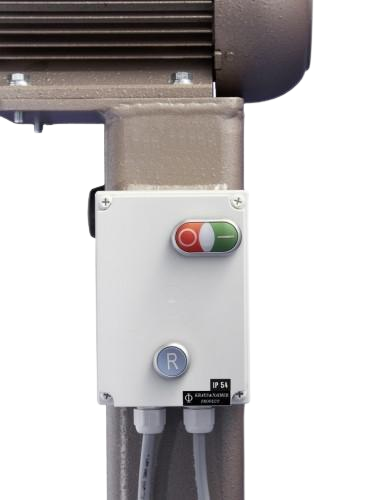

- motor protection against electrical overload
- extremely wear resistant, precision grinding discs for careful cutting of the material

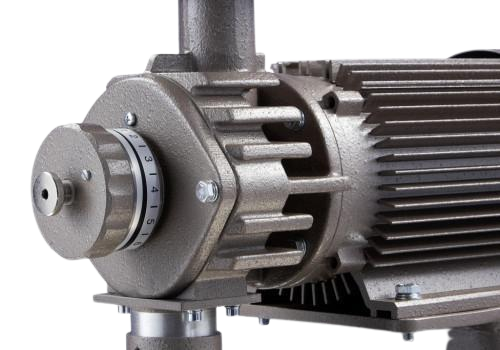

- the grind adjustment wheel provides fine, accurately repeatable control of the degree of grinding finess.

Hopper Capacity: 66 lbs
Grinding Capacity – fine to medium: 265 - 287 lbs/h
Voltage: 208 - 220 V
Frequency / Phases: 60 Hz / Three-Phase
Motor - rated power, Amps / hp: 9.7 Amps / 3 hp
Grinding Disc Diameter: 130 mm
Grinding Disc Material: tool steel
Dimensions (w x d x h): 31.1“ x 48.4“ x 61.0“
Net weight: 291.0 lbs
Shipping Weight: 478.4 lbs
Container: 200l, mobile (53 gal)
