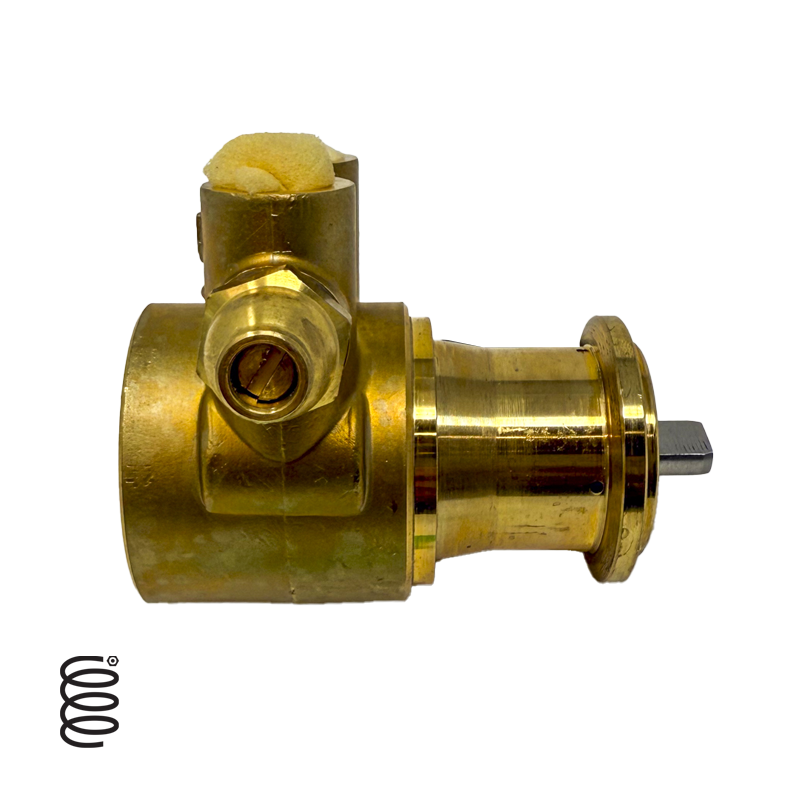

PA201 Fluid o Tech Pump

CaffeTech Canada Stocks and supplied Fluid o Tech Pumps for the Coffee Industry. The PA 201 Espresso Machine Pump head compatible with many rotary pump driven commercial espresso machines. CaffeTech Canada recommend this pump head for  1 and 2 Group Commercial Espresso Coffee Machines

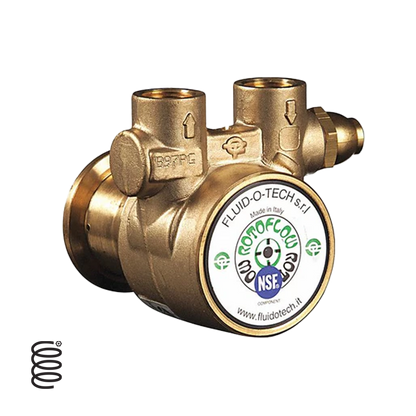

Fluid-O-Tech, ROTOFLOW,  No-Lead Brass Rotary Vane Pump, Clamp On StyleThe rotary vane pumps, manufactured by Fluid-o-Tech® and sold worldwide under the trademark Rotoflow®, are volumetric pumps designed for pumping water and moderate aggressive liquids with low flow at high pressure.Technical features and manufacturing characteristics. The rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8” GAS or NPT threaded.

The pumps are designed to be directly mounted to the motor with a stainless steel clamp.

Maximum operative temperature: 70 °C (158 F)

Why Choose Fluid-O-Tech Pumps from CaffeTech Canada?

CaffeTech Canada is an authorized supplier of Fluid-O-Tech espresso machine pumps, offering genuine OEM replacements, expert support, and Canada-wide shipping. Our service team ensures you get the correct pump for your specific machine model, helping you avoid downtime and costly misfits.

Features

• Self priming
• Quiet operation
• Pulsation free flow
• Internal relief valve available
• Long service life
• NFS and WRAS listed
• Comes with SS Clamp

Specificaions

• clamp connection
• equipped with standard bypass
• 75 gph max flow (GPH)
• maximum static pressure 18bar
• fitting ø 3/8" GAS (BSP)
• Length without pin 87mm
• N.S.F. approved.

Resources

• Fluid O Tech 100-300 Data Sheet
• Fluid O Tech 100-300 Parts Breakdown
