La Spaziale Mini Vivaldi II Espresso Machine

La Spaziale Mini Vivaldi II Espresso Machine features a Vibratory Pump, Dual Boiler and PID Technology using LaSpaziale's Patented Brewing Group. The Vivaldi line by La Spaziale has been updated several times now, including the very popular Vivaldi II, which was the recipient of the Coffeegeek Editors' Choice Award for Best New Product in 2006.

Contact CaffeTech Canada for more  sales information on The La Spaziale  MINI VIVALDI  II Espresso Machine. and other La Spaziale Espresso Machines

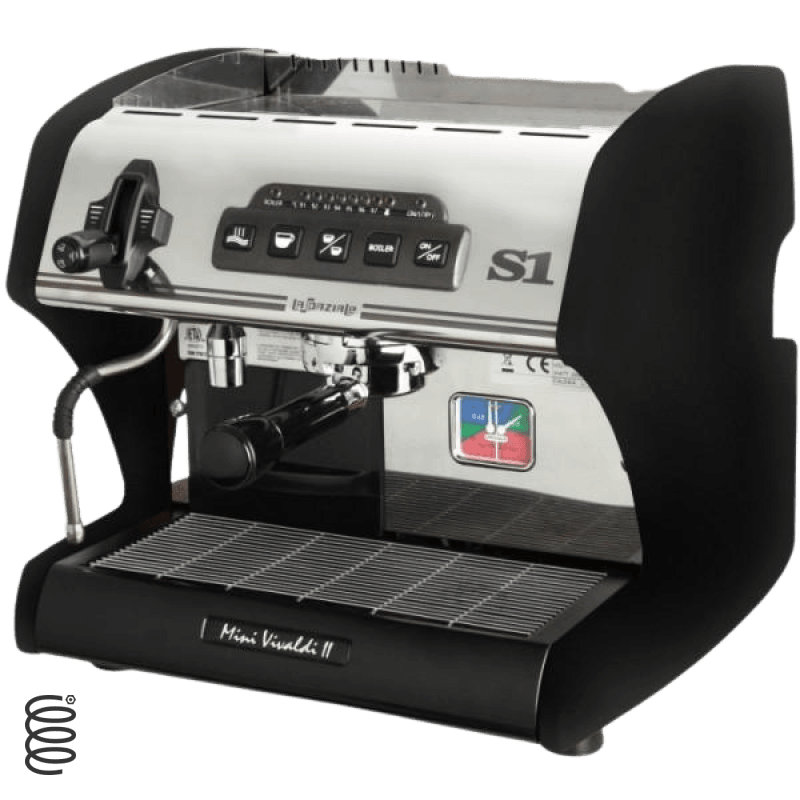

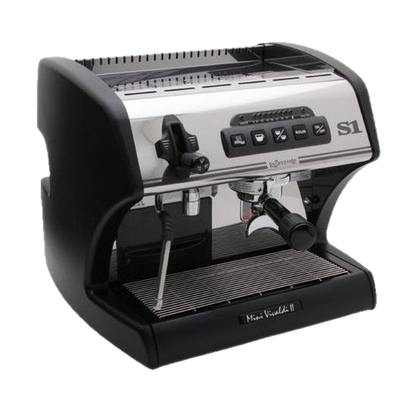

The La Spaziale S1 Mini Vivaldi II Espresso Machine comes to the latest iteration with the perfect name for one of the absolute best single group dual boiler espresso. The key difference between the Mini and the regular Vivaldi II is that the former is equipped with a vibratory pump, and therefore cannot be plumbed in (the regular Vivaldi II, by contrast, can only operate when plumbed in). Nevertheless, the Mini carries a large removable 3-liter reservoir that is easily accessible through the front.

The LaSpaziale Mini Vivaldi II is the smaller version of the Vivaldi II, which are both categorized under the S1 Line from La Spaziale’s domestic lineup of espresso machines. Despite its smaller size, the Mini has an exceptionally sturdy build and is packed full of functionality typically found in larger, higher-priced models. Some of the key features include dual boilers and volumetric dosing. Like the regular Vivaldi II, the Mini has very precise controls that automatically detect temperature changes to within half a degree, and can be easily adjusted on a digital LED display. Combined with an optional pre-infusion chamber (allowing for shots’ pre-infusion timing to be customized) this is a serious machine, capable of consistently delivering top-notch semi-automatic espresso shots.

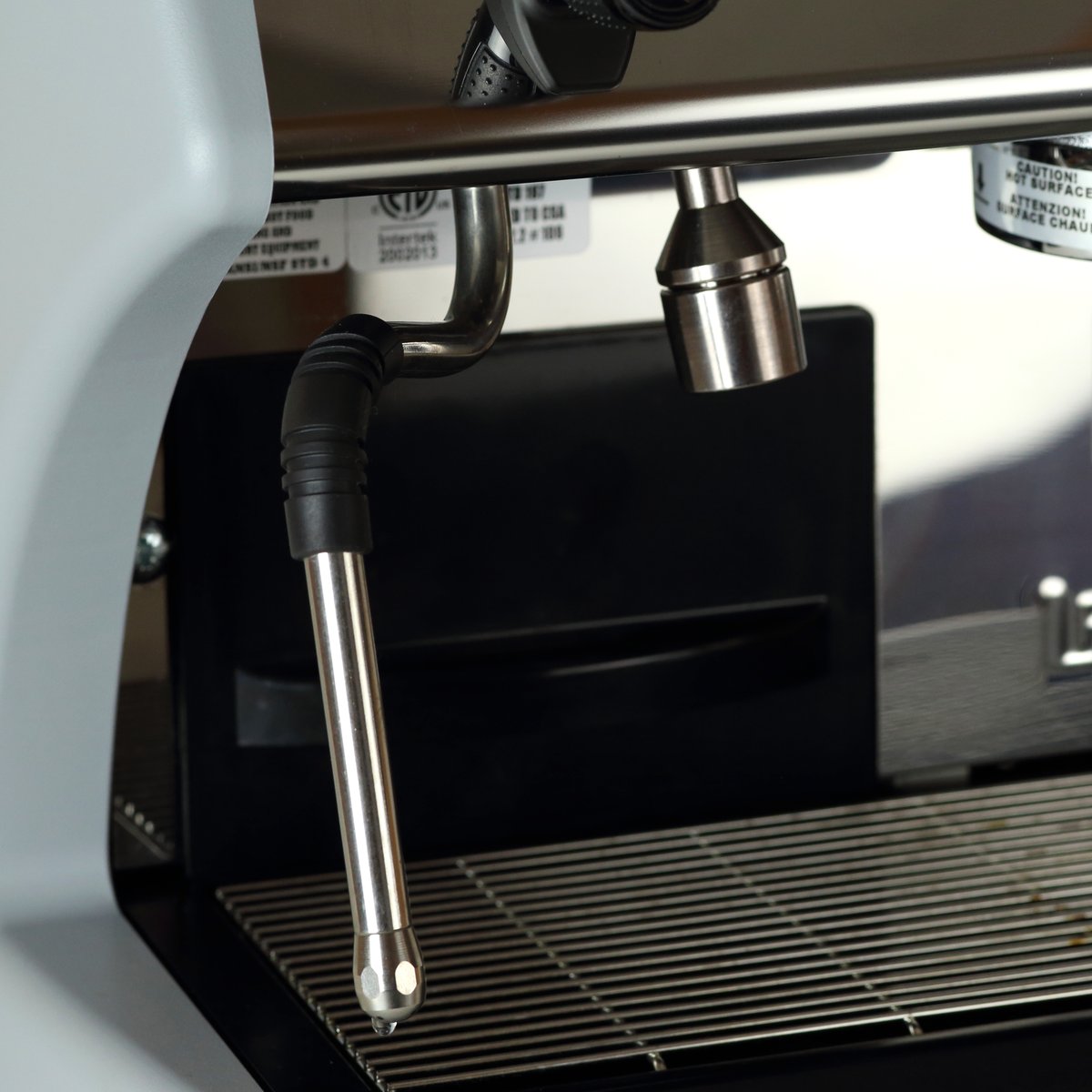

For latte and cappuccino lovers, the Mini also has the same powerful 4-hole tipped, no-burn steam wand capable of quickly and easily producing professional-quality microfoam. Interestingly, La Spaziale has made all Vivaldi II models capable of running on either 15 and 20 amps (which can be set via an internal switch). Either amperage works great, but for users wanting extra fast boiler recovery time the additional 5 amps makes a noticeable difference.

Overall this machine packs a punch both for its size and its price. It is able to fit easily on the average kitchen countertop and perfect for quickly heating up to make superb espresso shots, conveniently, and in the comfort of your own home

  • Redesigned top cover
  • Steam tip with 4 smaller 0.9 mm holes
  • Dual boiler
  • Programmable offset differential
  • Swivel stainless steel steam arm
  • Manual fill, 2.4-liter water tank
  • Vibratory pump (extremely quiet)
  • Volumetric dosing, adjustable through the touchpad

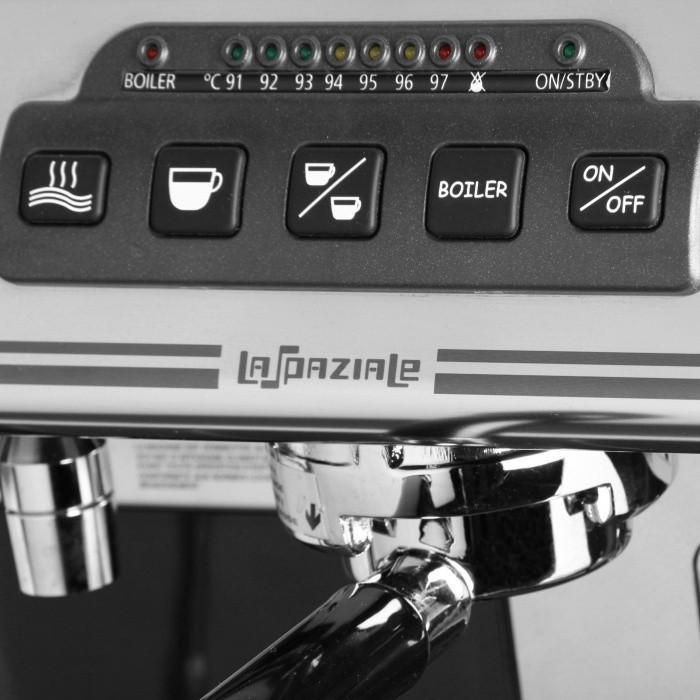

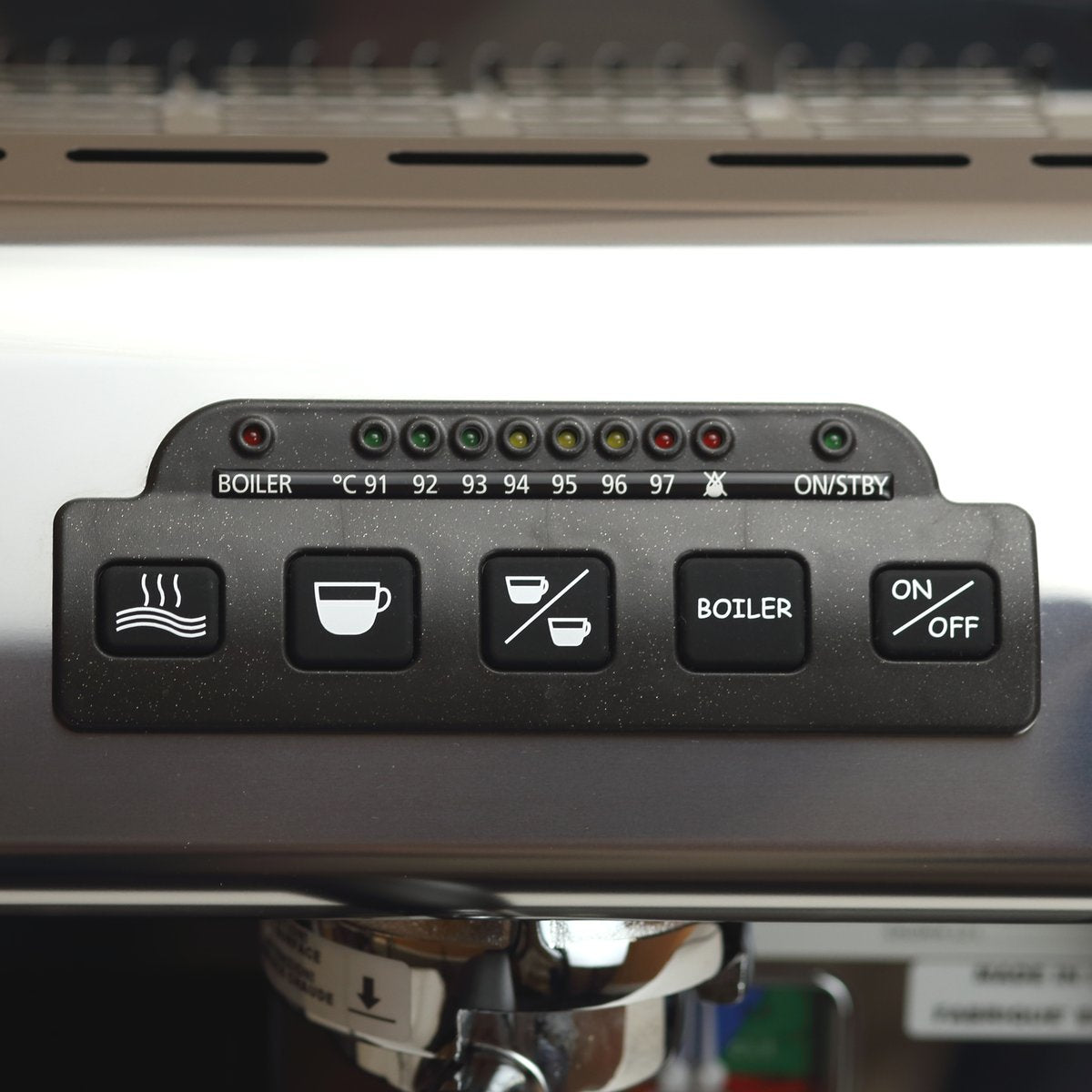

  • One-degree group temperature adjustability, indicated by LED display
  • Group temperature adjustable through the touchpad
  • Electronic boiler refill
  • Built-in safety thermostat
  • Built-in safety cut out on the vibratory pump
  • Semi-automatic hot water delivery

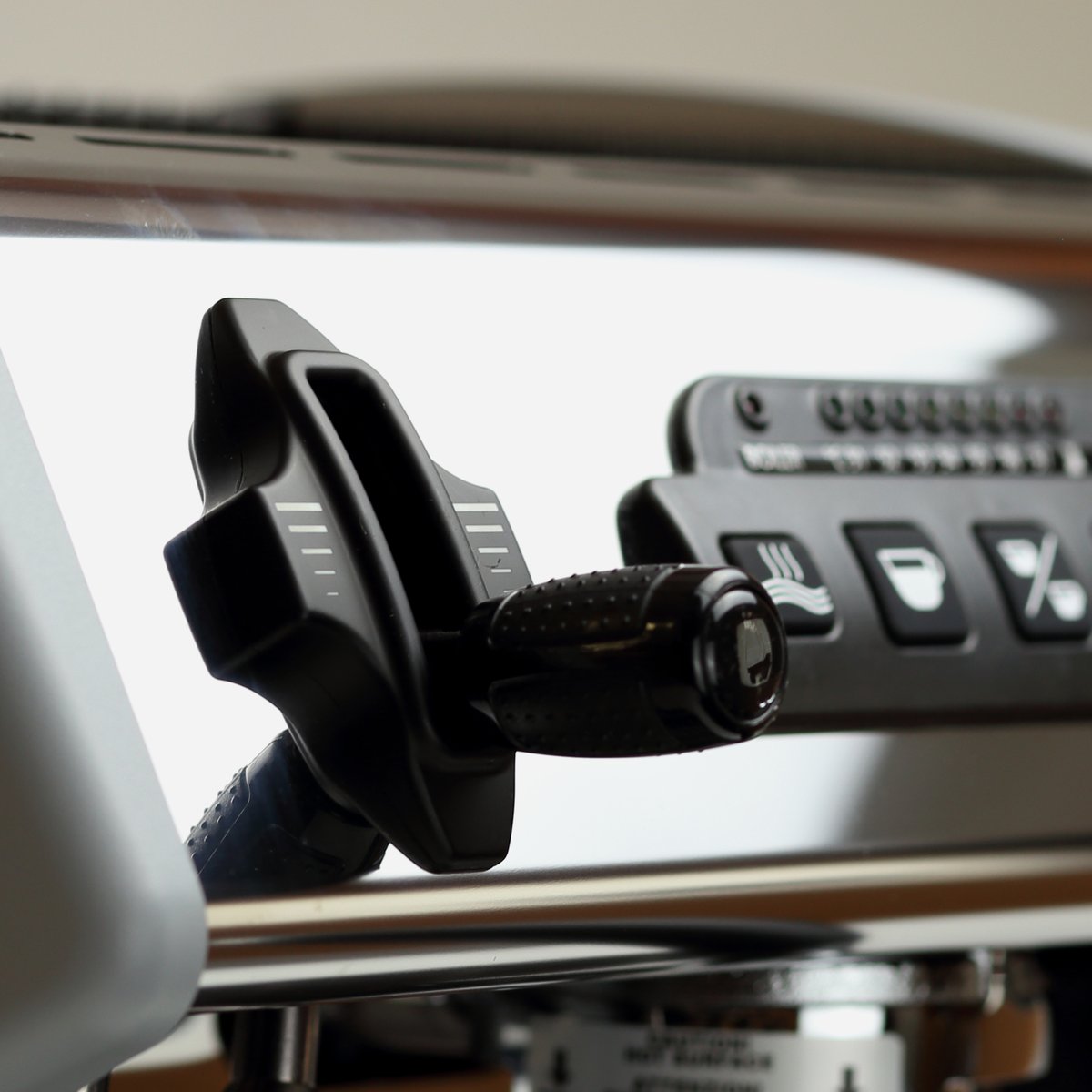

  • Lever steam valve, same as La Spaziale S5 commercial machines
  • Fault diagnosis alarms

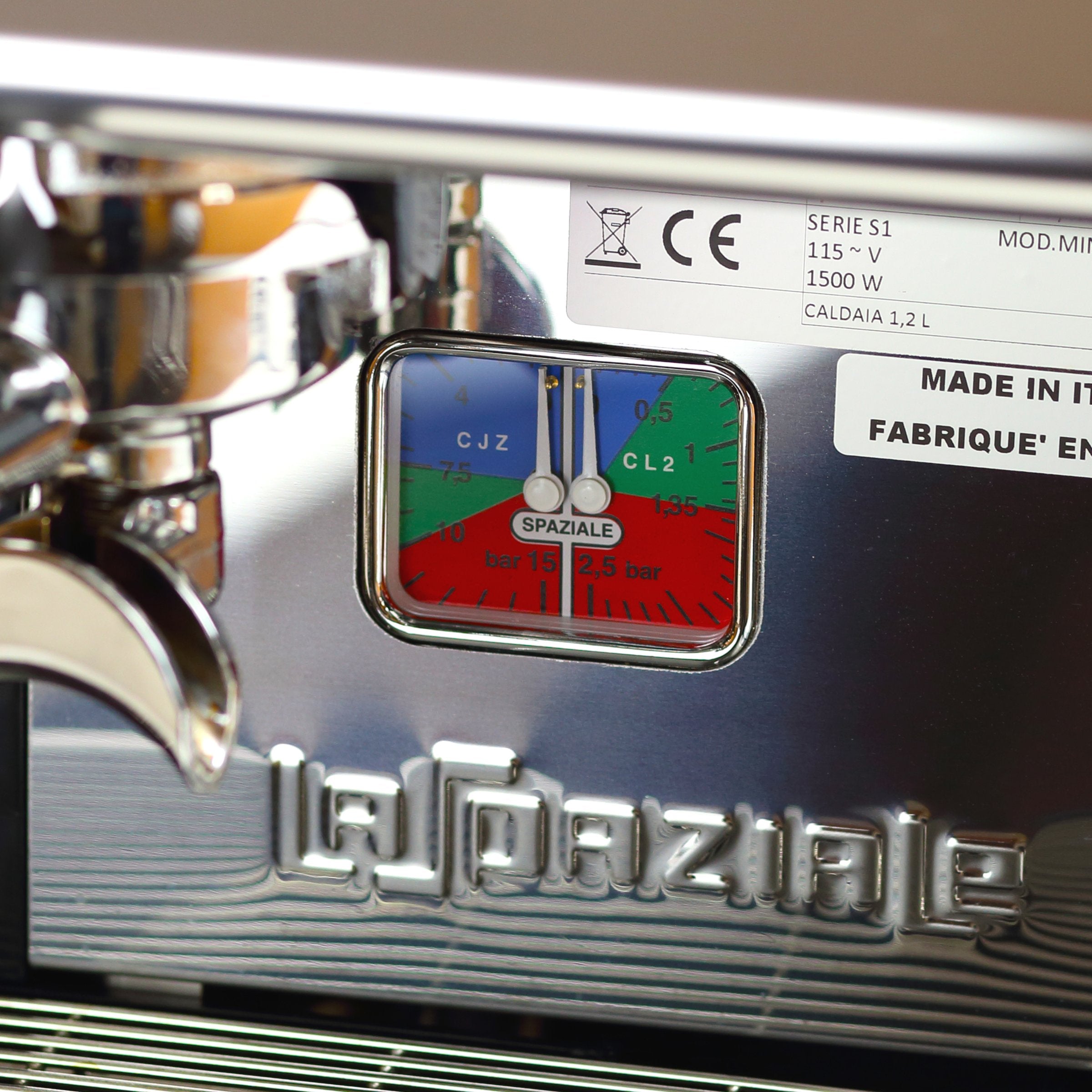

  • Dual manometer
  • 15 Amp / 110 Volts
  • 2 1/2" clearance between the drip tray and the portafilter
  • Improved design with space for holding your mugs
  • Excellent micro foam from the .9 mm four hole steam tip
  • Programmable timer with multiple settings (optional)
  • A more accurate temperature probe
  • Dual manometer eliminates the need for a portafilter with a pressure gauge
  • Ability to add a pre-infusion chamber(optional)
  • Programmable offset differential


The La Spaziale Mini Vivaldi II comes with a detailed instruction manual and a set of two 53mm portafilters- one for single shots, the other for doubles.

As of April 2011 the Mini Vivaldi II has been updated. The following features have been introduced:
- New top cup warming tray.

- New stainless cup guards on each side to replace the plastic cup guard.

- Dual Solid State Relay - The relay replaces both triacs and the fan is no longer used. The relay should prove to be more reliable and you will no longer have the noise from the fan for the steam boiler triac.

Width 16.3"
Depth 16.3"
Height 15.2"
Weight 66 lbs

Boiler Capacity

Coffee - 0.45L

Steam - 0.25L

Power Absorption

Volts (V) - 110

Hertz (Hz) - 60

Wattage (W) - 2200


Modes and Settings Cheat Sheet

Timer Manual

Temperature Measurements Sheet

La Spaziale S1 Vivaldi Schematic

Warranty Information
