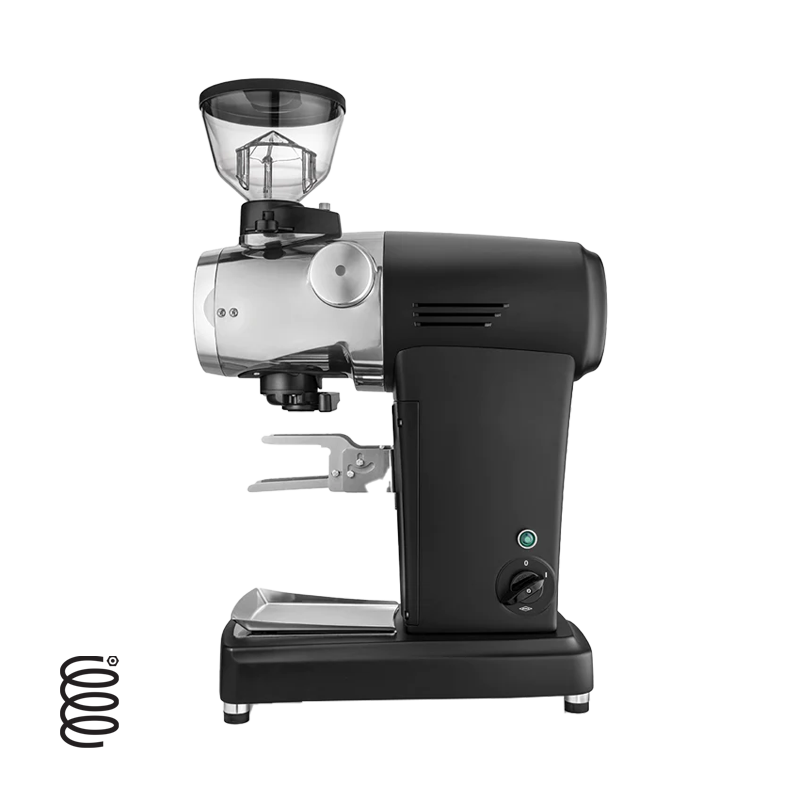

Mazzer ZM Plus Multi Purpose Coffee Grinder

$5,195.00 $5,495.00

Questions? Call Us Toll Free.

1 780 - 414 - 1200

Mazzer ZM Plus Multi Coffee Grinder

CaffeTech Canada presents the Mazzer ZM Plus Coffee Grinder. The ZM Plus is a grinder with adjustment system that allows measurement of the actual distance between the burrs in microns. The main difference between the ZM and the ZM plus is the retractable holder allows THE ZM PLUS to grind coffee directly into the portafilter basket (espresso).

The ZM Plus uses a stepper motor to control burr distance, and calibrates the zero point between the burrs upon first setup and every time the burrs are serviced or replaced.  It is extremely flexible by changing the burr distance and can be used both for filter coffee, Batch Brew, pour over and espresso. It is extremely flexible and can be used both for filter coffee and espresso just changing the burrs. On the digital display 20 preset grind settings can be recorded, with 4 pre-programmable buttons for quick recipe recall. The Mazzer ZM Plus Coffee Grinder has coffee retention of under 0.45 grams to allow for single dosing. These features create a grinder that fits perfectly in the workflow of a specialty cafe and Roaster Cafe Operation where retail Coffee Bags of various coffee grind settings are sold in good volume

Internally, the ZM Plus uses 83 mm flat steel burrs, mounted vertically directly over the exit chute - which can be outfitted with a bag clamp spout or a catch cup using a quick-twist fitting that makes swapping a cinch. Thanks to that short grind path, retention is also quite low. Our testing found that residual dust and grounds in the burrs measured less than 1 gram when grinding for filter, and under 5 grams when ground for espresso. The only outlier we found was that the bag clamp spout can hold 10 grams or so if grinding a large batch (70-100 grams or more), but knocking the spout with the clamp freed those grounds up easily. Multiple burr options are available for the ZM: the included 151F model burrs are excellent at grinding for brewed coffee from fine to coarse, and the 151G burrs are meant to further improve grind uniformity. By installing espresso burrs (151B), you can pull exceptional shots of espresso and use the ZM Plus for filter coffees. The ZM Plus offered through CaffeTech Canada can of course grind fine enough for pressure profiling machines or lower pressure extractions.

A digital control panel on the front of the ZM Plus is accessed using the combination knob and button on the right side of the grinder. Turning the knob will scroll through menu options, and pushing the knob in accesses the selected option. Up to 20 grind settings can be stored in the grinder's memory, and up to 4 of those can be stored on the quick access buttons on the front of the display. The grinder can also be run in timed mode, using a single set burr distance, so a full hopper may be used to dose out various portions of ground coffee. Included is a small 320 gram hopper, and larger accessory hoppers are available for purchase.

Note: The Mazzer ZM Plus offered through CaffeTech Canada comes standard with 151B burrs


    The special steel k burrs and excellent burr parallelism give consistent particle size distribution.


    The Electronic TRUE ZERO calibration ensures that the ZM grind settings are identical from grinder to grinder, café to café.


    The digital grind adjustment controls the distance between the burrs in microns so the grind setting is understandable, accurate, and repeatable.


    Retention is less than < 0.45g and is perfect for single dosing.


    Can record up to 20 grinding positions with customized names and features 4 pre-programmable buttons for quick recipe recall.


    The digital display flips to the side to allow easy access to the grinding chamber for cleaning and burr replacement.

  • Flat burrs
  • Low coffee retention  (<0.45 g)
  • Electronic True Zero calibration
  • Low r.p.m. with excellent grinding speed
  • Ventilation system with electronic control
  • Micrometrical digital grind adjustment mechanism
  • Can record up to 20 grind settings
  • Grinding chamber easy to clean
  • On-demand dosing capability
  • Double safety switch
  • Patented lockable canister to keep coffee grounds from getting on the counter
  • Bag holder
  • Standard equipment: 320g hopper
  • Optional: 1,3 kg (2,9 lbs) hopper, inox canister

Use: on demand / grocery

Version: electronic

Power: 800 watt

Grinding adjustment: Digital grind adjustment

Burrs: Flat special steel burrs

Diameter standard burrs: Ø 83 mm - 3 1/4 inches

Standard fitted burrs: either k151F for filter or k151G filter or K151B espresso or k151I hybrid

Weight: 39 kg (85 lbs)

RPM: 900 rpm @50Hz | 1050 rpm @60Hz

Body: aluminum die casting

Hopper capacity: 0.32 kg (0.7 lbs)

Cooling system: Double fan cooling system

Optional hoppers measures: 1 | 3 kg (2 | 9 lbs) hopper

Output: medium

Extraction method: espresso single dosing and filter

Recordable grind settings: 20

Recordable time settings: 4


mm inches
A 245 9 3/4
C 430 17
E 160 25 1/2
H 645 25 1/2
H hopperZM 1.3 kg (standard fitted upon request) 720 28 ½
H hopperZM 0.32 kg (standard) 645 25 ½
