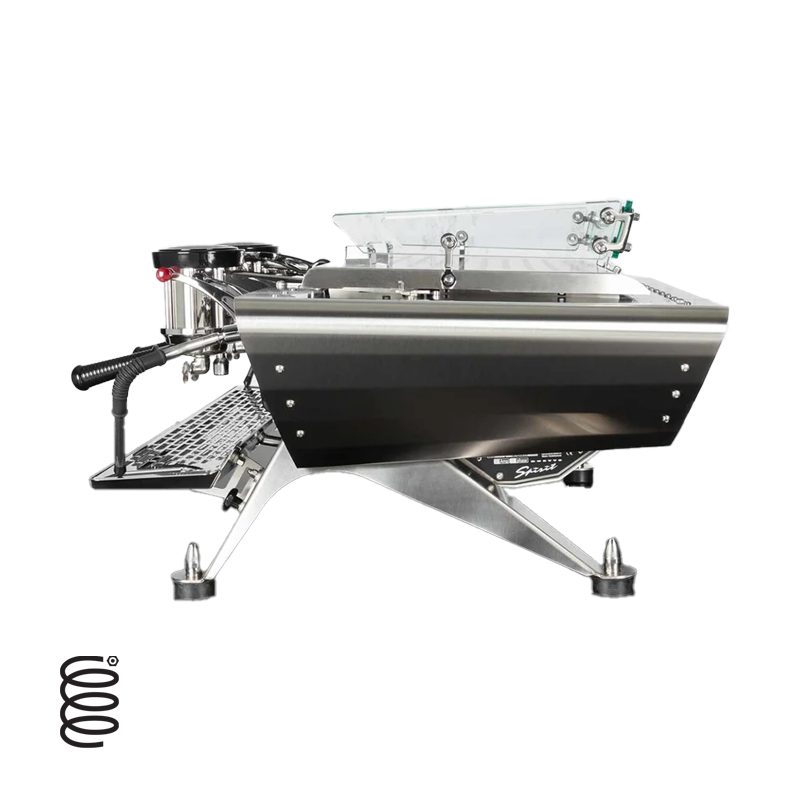

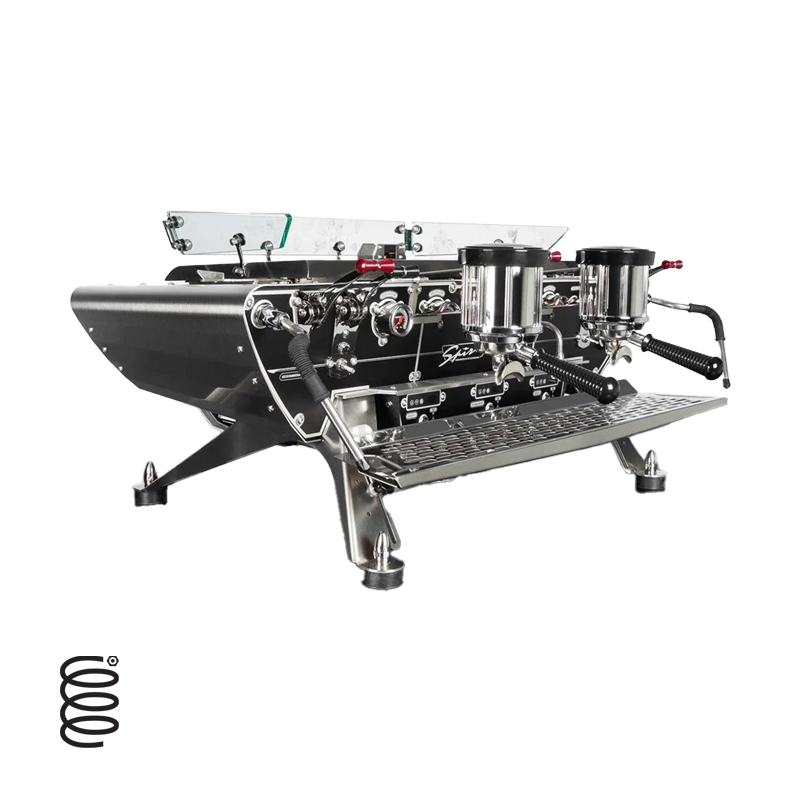

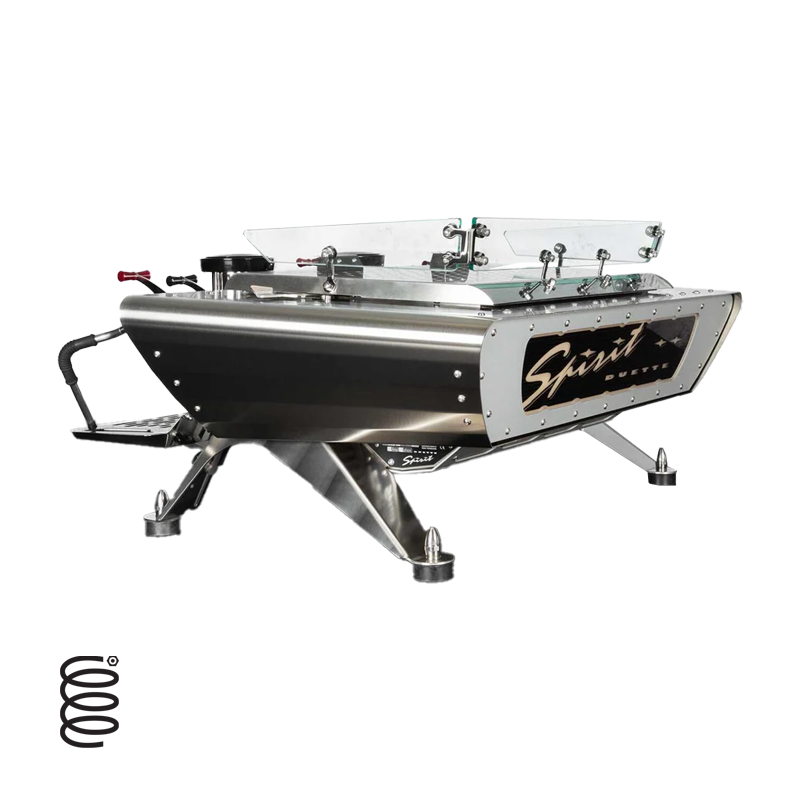

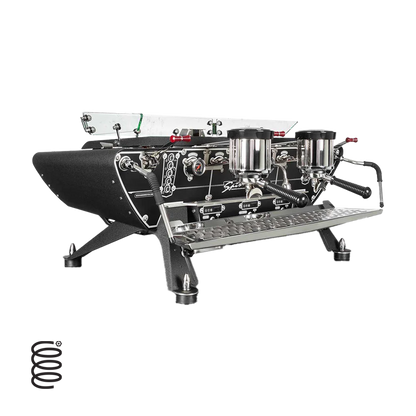

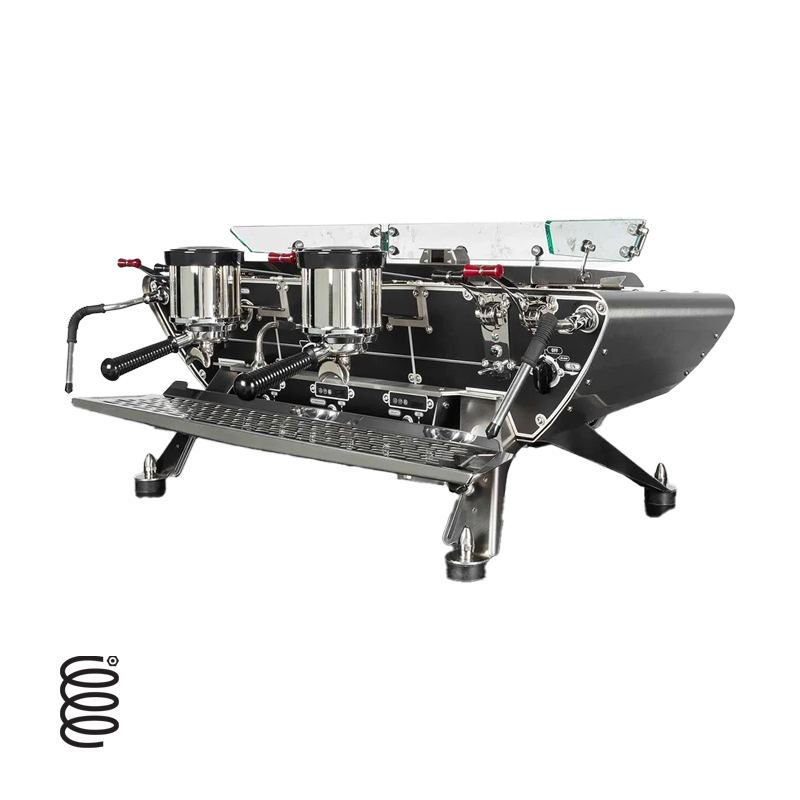

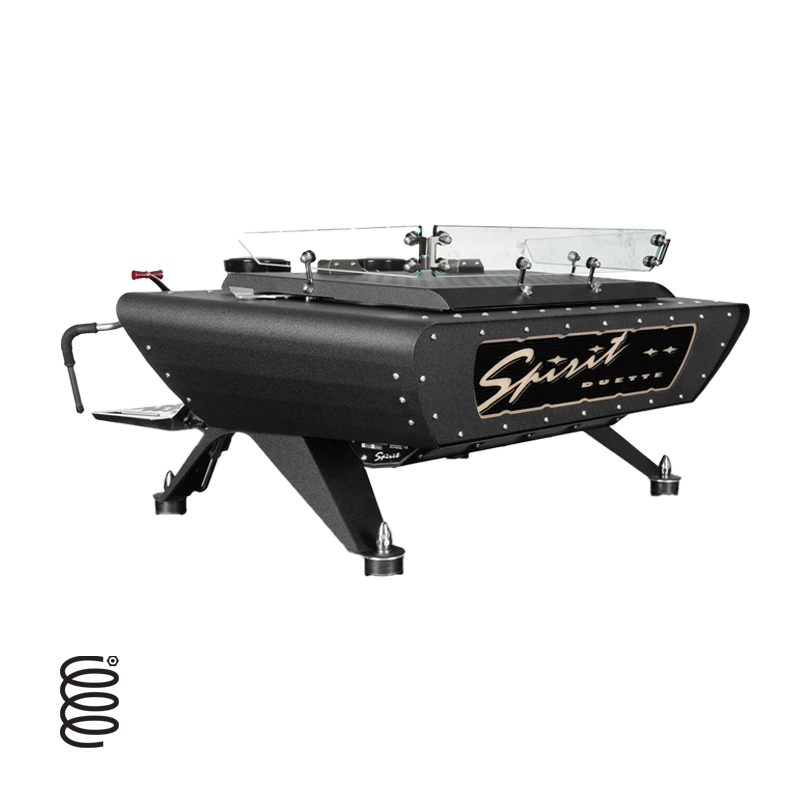

Spirit Duette Espresso Coffee Machine By Kees Van Der Westen

Available Options: Please contact sales@caffetech.com for pricing on available options below

Idro-matic This adjustable progressive pre-infusion cylinder offers a wide variation of starting pressures to play with.

Touch Pads Each group can be activated with 4 easily programmed volumetric buttons, or a continuous flow button.

Bastone Each group is activated by one of our custom “Bastones”, a small lever which offers two programmable volumetric settings and still used in manual mode

Crackle Black Frame The frame can be finished with a crackle black powder coating.

Raw Frame The stainless steel frame is left in its original raw state and is lightly brushed to create a slightly rough and raw look

Raw Body Panels The body panels are brushed in a single direction giving your machine a raw look

Polished Body Panels all body panels can be polished to a mirror finish

Crackle Black Body Panels The stainless steel body panels are finished with a crackle black powder coating.

Spirit Logo on rear panel  The Spirit logo is printed on the illuminated rear panel and controlled  with an LED light switch.

Custom RAL Colors provide your own RAL colour to personalize your Kees Van Der Westen Espresso machine

Illuminate Rear panel  customize your back panel.  Click to download the specification file for the Duette or Triplette.

Long Espresso Infusion Optimization The Spirit is dedicated to deliver the best possible espresso extraction. If you prefer Longer Volume pre infusion you can alter your machine to optimize the pre-infusion for Longer espresso pre infusion. This can be altered per group individually.

Temperature Read out Your machine can be delivered with the readout in either degrees Celsius or Fahrenheit.

Dedicated Pumps per group  With the pump per group option each group is connected to a dedicated pump to cater specific pump pressures per group. The individual group pumps may be fed with varying water qualities.

Espresso cup elevated platform  alter the height for various cup sizes.

Optional Steaming Pitcher platform to improve your working space and adjust according heights of various steam pitchers

Ivory Coloured Details  Group caps, filter holder handles & if so equipped Bastone lever knobs made of ivory coloured material. You can also choose a combination of red & ivory, to distinguish between group and steam lever.

Wood Details  Group caps, filter holder handles & if so equipped Bastone lever knobs made of two high quality Wood grain options; American Walnut or American Oak and made exclusively by Specht design with ethically sourced wood species.

• Standard equipped with 2 external pumps. One to extract coffee, one to re-fill the steam boiler and to add some cold water to the hot water spout. This to ensure the steam boiler will be re-filled without affecting the coffee extraction, even during very busy times when for hours on end one or more groups are activated. To ensure the hot water supply is always at the correct same temperature, the re-fill of the steam boiler is deactivated during hot water supply.
• Shot timers, installed in full view,  right above each group.
• Illuminated rear panel, optionally with printed custom logo.
• Intuitive operation by levers. Group levers offer 2 automatic shot volumes per group. These can also be programmed at endless, to offer on-off operation.
• Self-bleeding groups.
• Auto-back-flush program, all groups pressurize and discharge simultaneously 8 times.
• One separate PID temperature controller for each boiler, display in full easy view.
• Energy saving Eco mode on each temperature controller, for nights and/or weekends.
• Energy saving hot water system. Some cold is added to the hot water, so less heated water is needed. This mix provides a steady, non-spattering stream with the correct temperature to prepare Americanos. The hot water is  controlled by a quick to adjust timer.
• Choice of touch pad to activate the group, offering 4 automatic volumes plus continuous, or the Bastone lever, offering 2 automatic volumes plus continuous. The touch pad can easily be swapped for a Bastone bracket, or vice versa, also later.
• Drip tray quickly adjustable in height, optionally a raised tray for espresso cups is available.
• Stainless steel filter holders with KvdW handles.
• Slow automatic infusion process, with step less build of pressure to full extraction mode. This allows a finer grind, creating more surface, so a higher yield in the cup, less chance on channelling,   preventing fines to travel down.
• Wide choice in filter baskets, both sizes as types.
• Rubber group gaskets remain flexible forever, do not become hard or brittle.
• Membrane type group screen, very nice dispersion, less coffee sucked up by discharge of pressure at end of extraction. Remains clean longer.
• Heat neutral polymer dispersion block, no loss of heat, no baking on of oils and fats, remains clean longer.
• Heavily protected heating element (extra safety level probe, cut-out switch with feeler against element in water, machine shuts down when any of the solenoid valves remains open for longer than 120 seconds).
• Entire frame in stainless steel only, powder coated in crackle black, optionally bare.
• Large steam boiler capacity:10.5ltr. with Duette, 19.5ltr. for the Triplette.
• Large coffee boiler capacity, total of 2.1ltr. each.
• Elevated position of body, easy cleaning of bar surface, yet low enough to allow comfortable barista-customer contact.

DIMENSIONS

Approximate dimensions and footprints of the Spirit are shown in the illustrations. The black circles are the anti-vibration feet. The optimal countertop feedthroughs are within the grey squares. Check the pre-install guide for recommended feedthrough sizes.

WEIGHT

The countertop should provide a solid base to carry the full weight of the machine: roughly 90kg for the Duette and 125kg for the Triplette.

NOTES

Water supply from a water treatment system should be within 1.5m (5ft) of the machine. The water supply hose that comes with the machine has a half ball at the end of the 3/8″ nut connector. Discharge should not be further away than 1.5m, have an internal diameter of at least 40mm (1.5″) and should be fitted with a trap. There must be space nearby to locate the water pump with its electrical motor.
