FLUID-O-TEC

PB201 Fluid o Tech Pump

$269.00

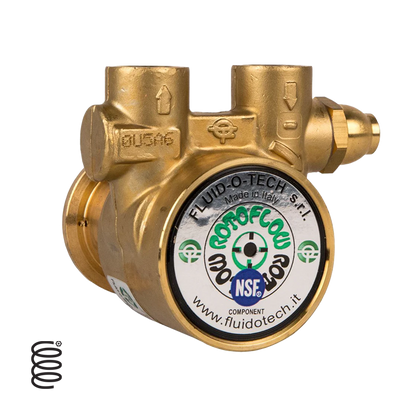

PB201 Fluid o Tech Pump

CaffeTech Canada Stocks and supplied Fluid o Tech Pumps for the Coffee Industry. The PB201 Espresso Machine Pump head compatible with many rotary pump driven commercial espresso machines. CaffeTech Canada recommend this pump head for  1 and 2 Group Commercial Espresso Coffee Machines

Fluid-O-Tech, ROTOFLOW,  No-Lead Brass Rotary Vane Pump, Clamp On StyleThe rotary vane pumps, manufactured by Fluid-o-Tech® and sold worldwide under the trademark Rotoflow®, are volumetric pumps designed for pumping water and moderate aggressive liquids with low flow at high pressure.Technical features and manufacturing characteristics. The rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8” GAS or NPT threaded.

The pumps are designed to be directly mounted to the motor with a stainless steel clamp.

Maximum operative temperature: 70 °C (158 F)

  • Self priming
  • Quiet operation
  • Pulsation free flow
  • Internal relief valve available
  • Long service life
  • NFS and WRAS listed
  • Comes with SS Clamp
  • clamp connection
  • equipped with standard bypass
  • 75 gph max flow (GPH)
  • maximum static pressure 18bar
  • fitting ø 3/8" GAS (BSP)
  • Length without pin 87mm
  • N.S.F. approved.
