SL 86000-20101 KIT PM SL E3- PM KIT For 3GROUP V3

Preventative Maintenance (PM) is exactly that—preventative. Regular maintenance is essential for every espresso machine, regardless of manufacturer or model, and is one of the most important investments you can make in the long-term reliability and performance of your equipment.

CaffeTech Canada's Preventative Maintenance Kits have been carefully assembled by Slayer to include the replacement of approximately a dozen critical wearable components located at key sealing surfaces, moving contact points, and safety systems throughout your SLAYER Espresso Machine. These components are designed to wear over time and should be considered your machine's first line of defence against unexpected downtime, costly repairs, and emergency service calls.

The PM components listed below are consumable service items and should be replaced at recommended service intervals of three, six, and twelve months, depending on usage and operating environment. We strongly recommend that your annual (12-month) preventative maintenance be performed by a qualified SLAYER-trained technician to ensure your machine continues to operate safely and at peak performance.

For customers choosing to perform their own maintenance, extreme care should be exercised. Proper tools, technical knowledge, and adherence to manufacturer procedures are essential to prevent damage to components or injury. If you are uncertain about any aspect of the installation, we strongly encourage you to consult CaffeTech Canada or an authorized service technician before proceeding.

Disclaimer: CaffeTech Canada accepts no responsibility or liability for damage to equipment, improperly installed components, personal injury, or other losses resulting from self-performed maintenance or repairs. By undertaking any DIY service, you acknowledge that you do so entirely at your own risk.

• 86000-20101 3g SLAYER Espresso V3 PM Kit
  10000-16210 Spacer  3
  46000-56091 Gasket for Group Head, 6.1mm  12
  46000-50073 Nano Coated Shower Screen - Custom Slayer 6
  46000-50080 Diffuser Screw, Stainless 3
  46000-50140 Valve, Anti-Suction/Vacuum, 1/4"  1
  46000-50150 Gasket, Copper, Flat, 19 x 13.5 x 1.5mm 3
  46005-53110 Steam Seal, Peek Plastic 3
  46000-53050 O-Ring for Valve Bushing  3
  46900-10010 Steam Valve Rebuild Kit  4
  46000-53090 O-Ring for Brass Steam Valve Pin  8
  46000-53070 Gasket for Steam Valve Brew Actuator, 27  5
  46000-50030 O-Ring for Steam Tip, 1.5 x 6  6
  40000-32180 EPDM Rubber Tubing 5/16" ID, 7/16" OD  70”
  46000-60000 Slayer Lube - 15g  1
  46000-56070 Double Portafilter Basket, Espresso  6
  46000-56160 Portafilter Locking Spring, 1.20 mm, Sta  12
  46000-50400 CB PRV, 1.9 bar  1
  46005-53061 Wand Bushing, PTFE  3
  46000-50130 Gasket, Copper, Flat, 22 x 17 x 1.5mm  1
  46000-50110 - NG Expansion Valve, Treated  1
  30004-50170 Water Level Probe Slayer Espresso, 115mm

•


1. Replacing Group Head Gasket

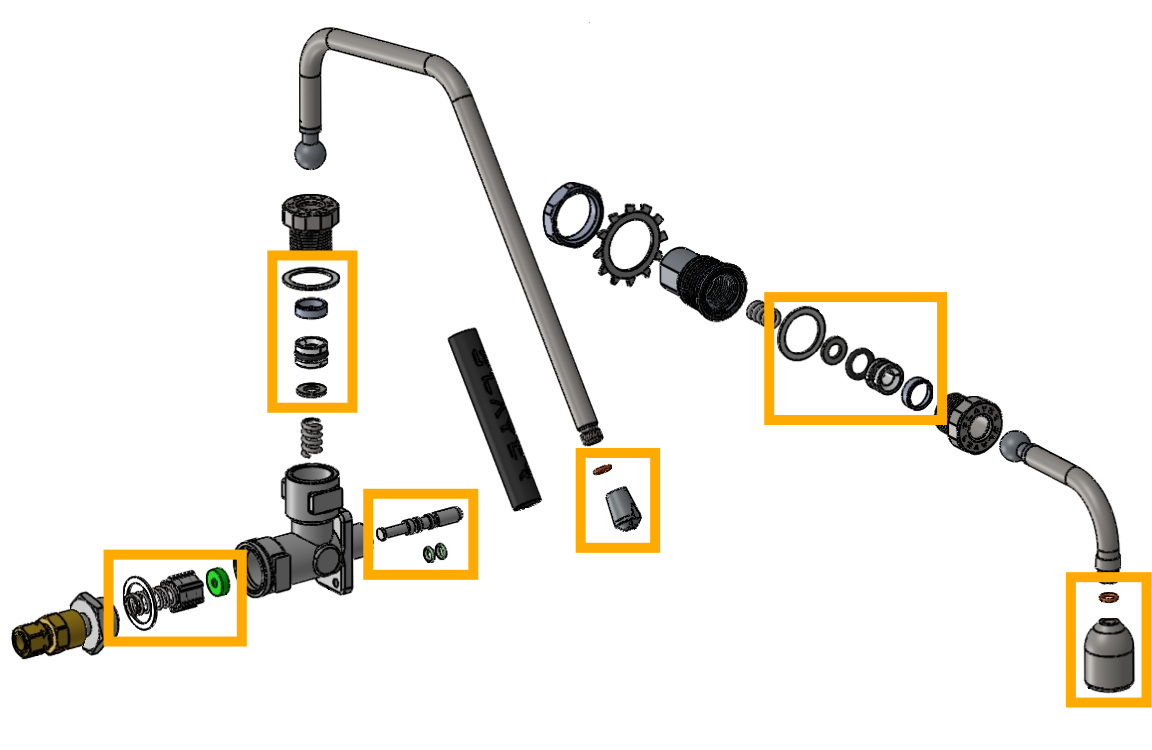

6 Month PM Parts:

1. 46000-50030 O RING FOR STEAM TIP, 1.5 X 6

2. 46005-53110 STEAM SEAL

3. 46005-53061 WAND BUSHING
1. 46000-53050 O-RING FOR WAND BUSHING

4. 46900-10010 STEAM VALVE REBUILD KIT

5. 46000-53070 TEFLON GASKET STEAM VALVE BREW ACTUATOR, 27

6. 46000-56091 PORTAFILTER GASKET

7. 46000-50073 NANO COATED SHOWER SCREEN

8. 46000-50080 DIFFUSER SCREW, STAINLESS

Annual PM: Every Twelve Months

1. Drain steam and brew tanks.

2. Replace group gasket, inspect dispersion screen & screw, and portafilter baskets & springs as instructed in Quarterly PM.
3. Verify water against SLAYER's Water Treatment Requirements.

Pro Tip: During service and mechanical disassembly, clean and visually inspect machine for areas of concern or debris accumulation. Espresso machines tend to collect all matters of dust and coffee debris that can be troublesome down the road. A well maintained SLAYER is easier to service!

Rebuild:

1. Rebuild Steam Valve & Hot Water wand assemblies as instructed in Bi-Annual PM.

2. Group Actuator

1. Step 4 details PM components.

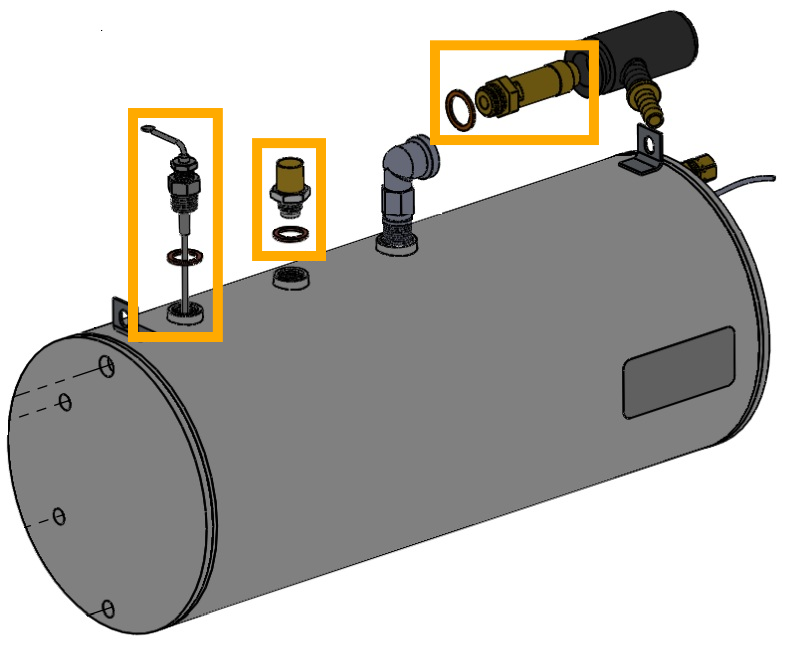

Replace:

1. Vacuum Breaker, Pressure Relief Valve, and Level Probe.

1. PRV discharge boot is not a PM component.
1. Apply several wraps of teflon tape to threads prior to installation.

1. Do not forget copper crush washers!

Replace:

1. Expansion Valve:

1. Apply several wraps of teflon tape to threads prior to installation.

2. Calibrate Expansion Valve - V3


46000-50110 EXPANSION VALVE sold in PM kits and as a spare part are not calibrated from factory!

Replace:

1. Brew Valve Discharge Tubing

2. 40000-32180 EPDM Rubber Tubing 5/16" ID, 7/16" OD

1. 2G: 40"

2. 3G: 70"

*Group cap removed for illustration purposes.

It is imperative to replace EPDM Brew Valve Discharge Tubing annually!
