CAFFETECH PARTS DEPARTMENT

CaffeTech E61 Rebuild Center

Find the right E61 group, identify the correct component, and rebuild with confidence.

1. Choose your E61→2. Find the part→3. Rebuild your group

COMPLETE REBUILD KITS

Choose your E61 rebuild kit

Each kit adds its highlighted parts individually. Open a kit to see its current parts total. For Rocket, confirm your group-head version with CaffeTech before ordering.

Swipe to explore all 9 kits Skip to parts ↓

E-61 REBUILD KIT - PROFITEC

E-61 REBUILD KIT - PROFITEC

View parts total

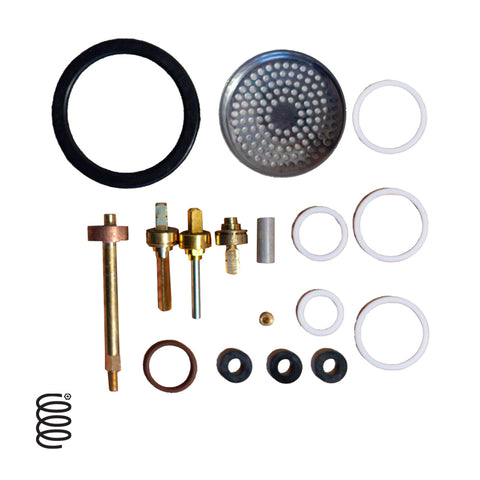

E-61 REBUILD KIT - ECM

E-61 REBUILD KIT - ECM

View parts total

E-61 REBUILD - PRE 2020 - ROCKET

E-61 REBUILD - PRE 2020 - ROCKET

View parts total

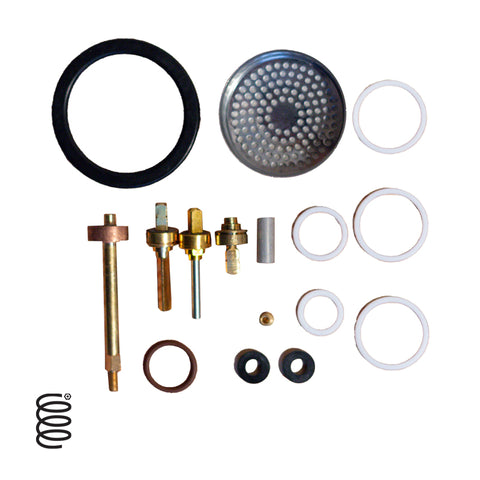

E-61 REBUILD - POST 2020 - ROCKET

E-61 REBUILD - POST 2020 - ROCKET

View parts total

E-61 REBUILD KIT - LELIT

E-61 REBUILD KIT - LELIT

View parts total

Traditional E61 rebuild kit parts reference; see Quick Mill kit contents

E-61 REBUILD - PRE 2020 - GENERIC

View parts total

Izzo E61 rebuild kit

E-61 REBUILD KIT - IZ

View parts total

Bezzera Mitica E61 Rebuild Kit

E-61 REBUILD KIT - BEZZERA MITICA

View parts total

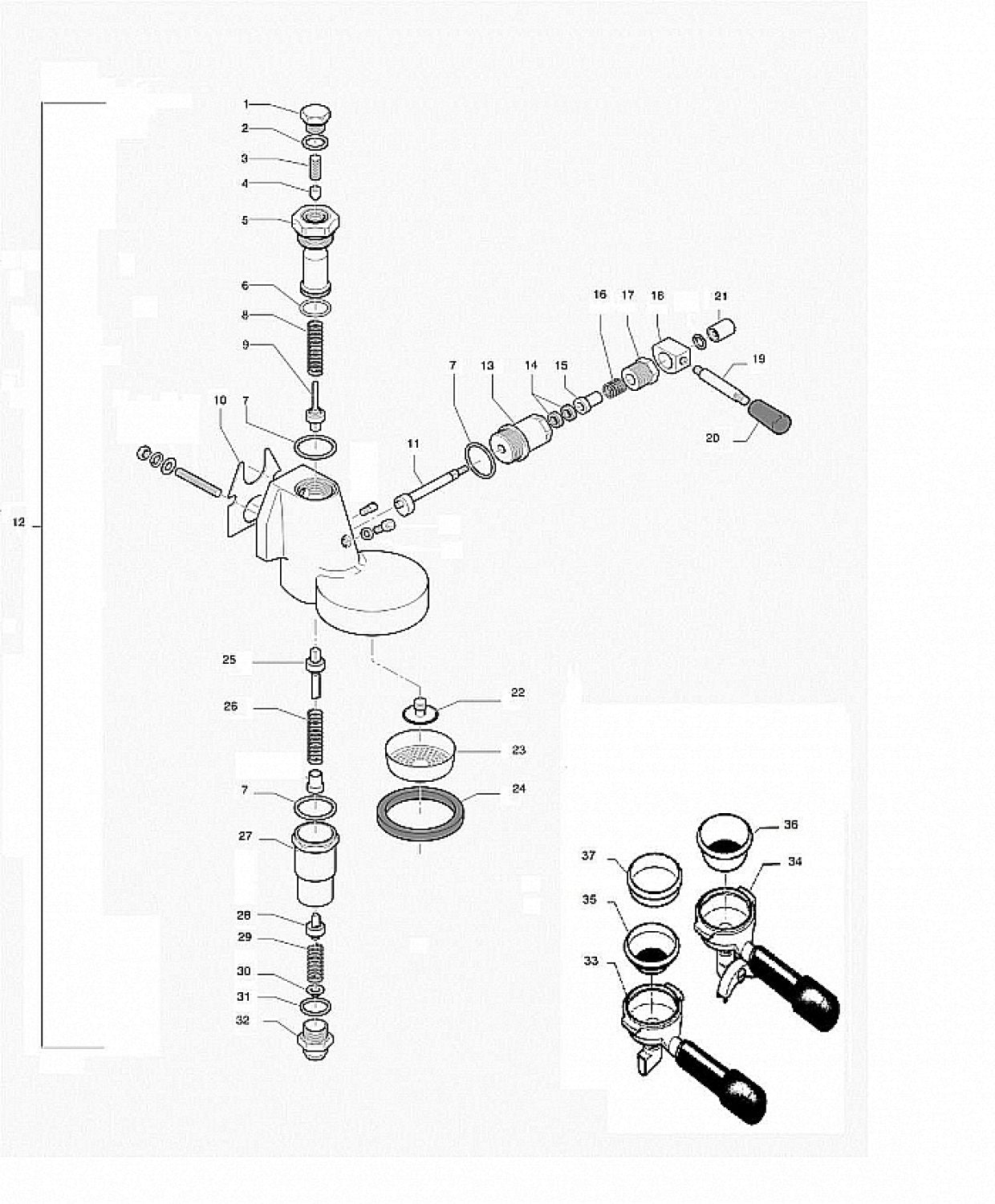

Traditional E61 rebuild kit parts reference; see Quick Mill kit contents

E-61 REBUILD KIT - QUICK MILL

View parts total

WHAT E61 DO YOU HAVE?

Choose your E61

EXPLODED PARTS DIAGRAMS

Shop by E61 Schematic

Select your machine above, find the matching position on the schematic, and open the part from the list beside it.

CAFFETECH TECHNICAL VIEW

Profitec E61

Profitec supplied schematic

CAFFETECH

Profitec E61 exploded E61 schematic

Manufacturer schematic • CaffeTech finder interface40 listed positions

PARTS & REBUILD

Profitec E61 Parts

Search by position, OEM number, or part name.

1

P P2011Profitec Spring ring M8

—

CONTACT FOR PART

2

P C309900164Profitec cylinder screw M6 × 10

—

CONTACT FOR PART

3

P C469901132Profitec COPPER FLAT GASKET Ø 10X6X1 mm

$2.70

KIT QTY: 3

4

P C469900421Profitec PTFE GASKET 35X30X2

$4.76

KIT QTY: 1

5

P C219900424Profitec BREW VALVE ASSEMBLY

$25.96

6

P B7479942Profitec SPRING GUIDE

$7.06

KIT QTY: 1

7

P C219903081Profitec VALVE BREWING GROUP MIDDLE

$27.84

8

P C229901165Profitec LOWER SLEEVE ASSEMBLY

$49.89

KIT QTY: 1

9

P C469900783Profitec LOWER PTFE GASKET

$3.79

10

P R000002148Profitec EXHAUST DIFFUSER

$4.69

KIT QTY: 1

11

P C219900430Profitec VALVE GROUP LOWER

$26.83

12

P R000002149Profitec LOWER DISCHARGE GROUP

$16.00

KIT QTY: 1

13

P C219900425Profitec CAMSHAFT / GROUP AXIS

$33.23

14

P R000002142Profitec FLANGE

$47.03

KIT QTY: 2

15

P C219900426Profitec CAM SHAFT GASKET

$2.43

16

P R000002143Profitec CAM GUIDE BUSHING

$3.79

17

P R000002144Profitec CAM HOLDER PLUG / AXIS CONNECTION

$25.00

18

P R000002145Profitec LEVER AXIS WITH BOLT

$89.00

19

P B7479947Profitec Lock washer M8

$2.95

20

P R000002146Profitec LEVER BOLT

$5.94

21

P C229901128Profitec SPRAYER BREW GROUP LOWER

$20.28

KIT QTY: 1

22

P C229900549Profitec GROUP JET M6×0.75 · 0.8 MM ORIFICE

$4.38

KIT QTY: 1

23

P C469900420Profitec CAP GASKET

$3.35

KIT QTY: 1

24

P C469900422Profitec MUSHROOM O-RING

$3.52

25

P C229901133.KProfitec Socket brew group complete

$49.56

26

P C449900767Profitec HEAD TO BODY GASKET

$7.85

27

P C309900131Profitec Allen screw M8 x 31

—

CONTACT FOR PART

28

P P2010Profitec Washer M8

—

CONTACT FOR PART

29

P C439900840Profitec LEVER HANDLE-BLACK

$12.00

KIT QTY: 1

30

P C519900103Profitec SHOWER SCREEN

$4.61

31

P P2524Profitec Pipe inlet group

—

CONTACT FOR PART

32

P P2525Profitec Pipe return group

—

CONTACT FOR PART

33

P C309900127.1Profitec Hex nut M8

$2.95

KIT QTY: 1

34

P P1018.2Profitec WATER FILTER 8.5X16MM

$7.72

35

P C219900423Profitec SPRING

$3.49

36

P C219900431Profitec SPRING LOWER

$4.59

37

P C219900427Profitec SPRING

$4.59

38

P P1018Profitec Brewing group E61

—

CONTACT FOR PART

KIT QTY: 1

39

P P1010Profitec GROUP GASKET 8.5MM

$9.95

40

P P1018.1Profitec SOCKET BREW GROUP COMPLETE

$280.49

CAFFETECH TECHNICAL VIEW

ECM Synchronika II

ECM brewgroup revision - 2024 source

CAFFETECH

ECM Synchronika II exploded E61 schematic

Manufacturer schematic • CaffeTech finder interface46 listed positions

PARTS & REBUILD

ECM Synchronika II Parts

Search by position, OEM number, or part name.

1

ECM B7479942ECM SPRING GUIDE GROUP

$7.06

2

ECM B7479947ECM Lock washer M8

—

CONTACT FOR PART

3

ECM C199901550.1ECM Safety thermostat 145°C

$33.73

4

ECM C219900423ECM UPPER / MIDDLE SPRING

$2.34

5

ECM C219900423ECM UPPER / MIDDLE SPRING

$2.34

KIT QTY: 1

6

ECM C219900424ECM UPPER BREW VALVE

$25.96

KIT QTY: 1

7

ECM C219900425ECM CAMSHAFT BREW GROUP

$33.23

KIT QTY: 3

8

ECM C219900426ECM CAM SHAFT GASKET

$2.43

9

ECM C219900427ECM GROUP AXIS SPRING

$2.19

KIT QTY: 1

10

ECM C219900430ECM LOWER VALVE GROUP

$21.80

11

ECM C219900431ECM LOWER SPRING

$5.90

KIT QTY: 1

12

ECM C219903081ECM MIDDLE VALVE GROUP

$27.84

KIT QTY: 1

13

ECM C229900549ECM FLOW RESTRICTOR 0.8MM

$4.38

14

ECM C229901128ECM SPRAYER BREW GROUP

$20.28

15

ECM C229901165ECM SLEEVE ASSEMBLY

$86.53

16

ECM C309900127ECM Hex nut M8 A2

$2.95

17

ECM C309900131ECM SET SCREW M8

$9.95

KIT QTY: 1

18

ECM C449900229ECM PORTAFILTER GASKET 8.5mm

$10.76

19

ECM C449900767ECM BREW GROUP / FRONT PANEL GASKET

$7.25

KIT QTY: 3

20

ECM C469900421ECM PTFE GASKET 35X30X2

$4.76

KIT QTY: 1

21

ECM C469900422ECM SOCKET BREW GROUP GASKET

$3.27

KIT QTY: 1

22

ECM C469900783ECM LOWER PTFE GASKET

$3.39

23

ECM C469901132ECM PTFE GASKET 10X6X1

$2.70

KIT QTY: 1

24

ECM C519900103ECM SHOWER SCREEN

$9.57

25

ECM P1000.1ECM INOX MUSHROOM ASSEMBLY

$189.00

26

ECM P1000.2ECM CAMLEVER SHORT

$77.23

27

ECM P1000.3ECM BREWGROUP CYLINDER

$66.30

28

ECM P1000.4ECM Screw plug brew group cylinder ECM

—

CONTACT FOR PART

29

ECM P1000.5ECM OUTLET BREW GROUP BOTTOM

$31.80

30

ECM P1002ECM LEVER M8 CHROME

$32.13

31

ECM P1004ECM GROUTING PIECE / GLAND SEAL

$3.68

KIT QTY: 1

32

ECM P1025.2ECM METAL FILTER GIGLEUR

$7.72

33

ECM P1075ECM Brew group E61 ECM with holes for heating cartridges

—

CONTACT FOR PART

34

ECM P1076ECM Mounting block heating cartridge

—

CONTACT FOR PART

35

ECM P1972ECM Washer M8 A2

$2.95

36

ECM P2011ECM Spring washer M8 A2

—

CONTACT FOR PART

37

ECM P2057ECM Hex socket head cap screw M6 x 10 A2

—

CONTACT FOR PART

38

ECM P2524ECM Inlet pipe brewing group

—

CONTACT FOR PART

39

ECM P2525ECM Return pipe brewing group

—

CONTACT FOR PART

40

ECM P6125ECM Hex socket head cap screw M4 x 18 A2

—

CONTACT FOR PART

41

ECM P7036ECM Sensor M5 group

—

CONTACT FOR PART

42

ECM P7037 / US1058ECM 2 heating cartridges 200W (230V / 110V)

—

CONTACT FOR PART

43

ECM R000002142ECM FLANGE

$47.03

44

ECM R000002144ECM CAM HOLDER PLUG / AXIS CONNECTION

$5.41

45

ECM R000002146ECM LEVER BOLT

$5.94

46

ECM R000002148ECM LOWER SPRAYER / EXHAUST DIFFUSER

$2.54

CAFFETECH TECHNICAL VIEW

Rocket E61

Rocket group revision - Ed. 10.2024

CAFFETECH

Rocket E61 exploded E61 schematic

Manufacturer schematic • CaffeTech finder interface35 listed positions

PARTS & REBUILD

Rocket E61 Parts

Search by position, OEM number, or part name.

1

RK A229904391Rocket ROUNDED TOP NUT / GROUP COVER

$9.32

KIT QTY: 1

2

RK C469900420Rocket CAP GASKET

$1.16

KIT QTY: 1

3

RK C619900554Rocket JET FILTER

$5.97

KIT QTY: 1

4

RK C229900549Rocket GROUP HEAD JET M6X1 HOLE Ø 0,7 mm

$1.72

5

RK C229901133Rocket group shaft

$49.22

KIT QTY: 1

6

RK C469900422Rocket MUSHROOM O-RING

$3.49

7

RK A999905754Rocket SPRING

$4.33

KIT QTY: 1

8

RK R229905608Rocket VALVE

$32.45

KIT QTY: 3

9

RK C469900421Rocket PTFE GASKET 35X30X2

$8.50

10

RK C449900767Rocket HEAD TO BODY GASKET

$7.85

11

RK A319904599Rocket SCREW

$1.08

KIT QTY: 1

12

RK R229905238Rocket CAM SHAFT T/C

$47.23

13

RK R000002142Rocket FLANGE

$68.35

KIT QTY: 2

14

RK C219900426Rocket CAM SHAFT GASKET

$4.01

15

RK R000002143Rocket SUPPORT

$7.00

16

RK C219900427Rocket SPRING

$5.37

17

RK R000002144Rocket CAM HOUSING COVER

$12.60

18

RK C229901228Rocket DIFFUSER

$13.63

KIT QTY: 1

19

RK R229905239Rocket GROUP INFUSION VALVE T/C

$47.59

20

RK A999905754Rocket SPRING

$4.33

21

RK C229901165Rocket CYLINDER

$51.40

KIT QTY: 1

22

RK R229905609Rocket LOW DRAIN VALVE T/C

$26.24

23

RK R299905958Rocket SPRING

$5.83

24

RK R000002148Rocket CONNECTOR

$8.16

KIT QTY: 1

25

RK C469900783Rocket LOWER PTFE GASKET

$1.16

26

RK R000002149Rocket CONNECTOR

$16.00

KIT QTY: 1

27

RK C519900103Rocket SHOWER SCREEN

$4.61

KIT QTY: 1

28

RK C449900229Rocket GROUP GASKET

$5.18

29

RK C200002983Rocket GROUP COMPLETE

$550.92

30

RK R299905887Rocket CAM KIT

$105.00

31

RK C610003902 / C610003901 / C619900106Rocket Rocket Baskets

From $12.00

32

RK A699905020 / A699905021Rocket Rocket Spouted Portafilter

$87.00

33

RK R000002146Rocket CHROMIUM PLATED CAP M6

$10.49

34

RK R299905888Rocket LEVER ASSEMBLY

$76.02

35

RK RA99905814Rocket CERAMIC GROUP SHAFT

$160.90

CAFFETECH TECHNICAL VIEW

Rocket pre-2020

Giotto / Cellini Evoluzione reference · 04/2011

CAFFETECH

Rocket legacy E61 exploded schematic, Giotto and Cellini Evoluzione April 2011

Giotto / Cellini Evoluzione reference · 04/2011

100%

PARTS & REBUILD

Rocket pre-2020 Parts

Search by position, OEM number, or part name.

1

RK A229904391Rocket rounded nut

$9.32

KIT QTY: 1

2

RK C469900420Rocket cap gasket

$1.16

KIT QTY: 1

3

RK C619900554Rocket jet filter

$5.97

KIT QTY: 1

4

RK C229900549Rocket restrictor 0.8 mm

$1.72

5

RK C229901133Rocket group shaft

$49.22

KIT QTY: 1

6

RK C469900422Rocket mushroom O-ring

$3.49

KIT QTY: 3

7

RK C469900421Rocket PTFE gasket

$8.50

8

RK C219900423Rocket upper valve spring

$3.49

KIT QTY: 1

9

RK C219900424Rocket upper valve assembly

$33.82

10

RK C449900767Rocket head-to-body gasket

$7.85

KIT QTY: 1

11

RK C219900425Rocket cam shaft

$47.23

12

RK C200002983Rocket complete E61 group

$550.92

13

RK R000002142Rocket cam-holder flange

$68.35

KIT QTY: 2

14

RK C219900426Rocket cam shaft gasket

$4.01

15

RK R000002143Rocket cam support

$7.00

16

RK C219900427Rocket cam spring

$5.37

17

RK R000002144Rocket cam housing cover

$12.60

18

RK R000002145Rocket lever shaft

$89.00

19

RK A829904329Rocket lever shaft pin

$7.58

20

RK A839904330Rocket group lever handle

$10.26

21

RK R000002146Rocket M6 cap / lever pin

$10.49

22

RK C229901228Rocket group diffuser

$13.63

KIT QTY: 1

23

RK C519900103Rocket shower screen

$4.61

KIT QTY: 1

24

RK C449900229Rocket group gasket

$5.18

KIT QTY: 1

25

RK C219900430Rocket infusion / drain valve

$40.92

26

RK A219904309Rocket valve spring

$4.66

27

RK C229901165Rocket lower cylinder

$51.40

KIT QTY: 1

28

RK C219903081Rocket lower valve

$26.24

29

RK C219900431Rocket lower valve spring

$5.83

30

RK R000002148Rocket connector

$8.16

KIT QTY: 1

31

RK C469900783Rocket lower PTFE gasket

$1.16

32

RK R000002149Rocket connector

$16.00

33

RK A699904324Rocket single filter holder

$87.00

34

RK A699904325Rocket double filter holder

$87.00

35

RK C610003902Rocket 7 g filter basket

From $12.00

36

RK C610003901Rocket 14 g filter basket

From $12.00

37

RK C619900106Rocket blind filter

From $12.00

CAFFETECH TECHNICAL VIEW

Lelit E61

Numbered Lelit PL62 Mara reference

CaffeTech Lelit E61 numbered exploded schematic

Numbered Lelit PL62 Mara reference

100%

PARTS & REBUILD

Lelit E61 Parts

Search by position, OEM number, or part name.

1

LL 2200095Lelit group cap Ø16 mm

$8.82

KIT QTY: 1

2

LL 8700000Lelit PTFE cap gasket

$1.16

KIT QTY: 1

3

LL 9700000Lelit jet filter

$6.19

KIT QTY: 1

4

LL 2200090Lelit gicleur / injector

$4.38

5

LL 1600084Lelit upper group sleeve / collector

—

CONTACT FOR PART

KIT QTY: 3

6

LL 8700015Lelit PTFE gasket 35×30×2 mm

$4.76

KIT QTY: 1

7

LL 8700007Lelit mushroom O-ring

$0.53

8

LL · position 8Lelit upper valve spring

$3.49

KIT QTY: 1

9

LL 4000032 Part 1Lelit upper valve assembly

$25.96

10

LL MC918Lelit head-to-body gasket

$7.85

11

LL 9100000Lelit M6 screw

$1.39

12

LL 8700040Lelit PTFE flat gasket 10×6×1 mm

$2.70

KIT QTY: 1

13

LL 4000032 Part 2Lelit primary cam / shaft assembly

$33.23

14

LL 2200005Lelit cam connection / lever component

$47.03

KIT QTY: 2

15

LL 4000032 Part 3Lelit camshaft gasket

$2.43

16

LL 2200091Lelit cam spring guide / support

$4.25

17

LL 1300002Lelit cam spring

$4.59

18

—Lelit schematic position 18 — source catalog does not list a separate orderable part

—

CONTACT FOR PART

19

—Lelit schematic position 19 — source catalog does not list a separate orderable part

—

CONTACT FOR PART

20

LL 3700005Lelit group lever knob

$7.84

21

LL · position 21Lelit group diffuser / spray nozzle

$20.28

KIT QTY: 1

22

LL MC930-3Lelit shower screen

$4.61

KIT QTY: 1

23

LL MC930-2Lelit portafilter gasket

$9.95

KIT QTY: 1

24

LL 4000032 Part 4Lelit central / infusion valve assembly

$47.59

25

LL 2200092Lelit spring guide

$5.24

26

—Lelit schematic position 26 — source catalog does not list a separate orderable part

—

CONTACT FOR PART

KIT QTY: 1

27

LL 4000032 Part 5Lelit lower exhaust valve assembly

$26.24

28

LL · position 28Lelit lower valve spring

$7.91

KIT QTY: 1

29

LL 8700017Lelit lower PTFE gasket

$3.79

30

LL 2200054Lelit lower drain fitting / connector

$14.01

CAFFETECH TECHNICAL VIEW

Generic E61

Numbered traditional E61 reference

CaffeTech Generic E61 numbered exploded schematic

Numbered traditional E61 reference

100%

PARTS & REBUILD

Generic E61 Parts

Search by position, OEM number, or part name.

1

E61 524462Generic E61 group cap

$8.82

KIT QTY: 1

2

E61 703008Generic E61 PTFE cap gasket

$0.68

KIT QTY: 1

3

E61 700805Generic E61 jet filter

$6.19

KIT QTY: 1

4

E61 524467Generic E61 gicleur

$5.73

5

E61 521023Generic E61 upper collector / trumpet

$41.14

KIT QTY: 1

6

E61 460000Generic E61 mushroom O-ring

$0.53

KIT QTY: 3

7

E61 513836/TGeneric E61 principal PTFE gasket

$4.76

8

E61 460085Generic E61 valve spring

$3.49

KIT QTY: 1

9

E61 460002Generic E61 upper valve assembly

$25.96

10

E61 · position 10Generic E61 cam stop

—

CONTACT FOR PART

KIT QTY: 1

11

E61 460012Generic E61 camshaft

$33.23

12

E61 · position 12Generic E61 flange

$47.03

KIT QTY: 2

13

E61 602576Generic E61 camshaft gasket

$2.43

14

E61 518604Generic E61 cam support

$4.25

15

E61 460080Generic E61 cam spring

$4.59

16

E61 460081Generic E61 cam cover nut

$25.00

17

E61 460082Generic E61 lever

$45.03

18

E61 · position 18Generic E61 toothed washer

—

CONTACT FOR PART

19

E61 460083Generic E61 lever cap nut

$5.94

20

E61 460097Generic E61 lever threaded pin

$5.36

21

E61 700739Generic E61 lever knob

$7.84

22

E61 526266Generic E61 M6 screw

$1.39

23

E61 · position 23Generic E61 PTFE flat gasket

$2.70

24

E61 · position 24Generic E61 brew-pressure gauge

—

CONTACT FOR PART

KIT QTY: 1

25

E61 460086Generic E61 central / preinfusion valve

$27.84

26

E61 460084Generic E61 spring guide

$5.24

27

E61 460077Generic E61 lower cylinder

$49.89

KIT QTY: 1

28

E61 634300Generic E61 lower PTFE gasket

$4.76

KIT QTY: 1

29

E61 460010Generic E61 lower exhaust valve

$17.48

30

E61 517849Generic E61 lower valve spring

$7.91

31

E61 460087Generic E61 exhaust diffuser / connector

$4.69

32

E61 460088Generic E61 lower connector

$14.01

33

E61 · position 33Generic E61 group diffuser / spray nozzle

$20.28

KIT QTY: 1

34

E61 526101Generic E61 shower screen

$8.00

35

E61 518608Generic E61 filter-holder component

$3.90

36

E61 · position 36Generic E61 filter-holder component

—

CONTACT FOR PART

KIT QTY: 1

37

E61 700883/5Generic E61 portafilter gasket

$9.95

38

E61 · position 38Generic E61 portafilter gasket / spacer

—

CONTACT FOR PART

39

E61 · position 39Generic E61 filter basket / insert options

—

CONTACT FOR PART

40

E61 · position 40Generic E61 filter-holder component

—

CONTACT FOR PART

41

E61 · position 41Generic E61 filter-holder component

—

CONTACT FOR PART

42

E61 · position 42Generic E61 filter-holder component

—

CONTACT FOR PART

43

E61 460003Generic E61 head-to-body gasket

$7.85

44

E61 529575Generic E61 mounting stud

$4.64

45

E61 · position 45Generic E61 washer

$2.95

46

E61 · position 46Generic E61 spring washer

—

CONTACT FOR PART

47

E61 · position 47Generic E61 M8 nut

$2.95

55

E61 620424Complete universal E61 brew group

$551.62

CAFFETECH TECHNICAL VIEW

Izzo E61

Faema-type E61 reference · confirm model/year

CAFFETECH

Izzo E61 group head exploded schematic

Izzo E61 reference · drawing 8069231Confirm exact machine/version before ordering

100%

PARTS & REBUILD

Izzo E61 Parts

Search by position or reference number. Alex Duetto IV uses a Faema-type E61 group, and Vivi PID uses an E61 lever group. Confirm the exact model/year before ordering.

1

IZ · position 1Izzo Group cap Ø16 mm

$8.82

KIT QTY: 1

2

IZ · position 2Izzo PTFE flat gasket Ø22.5×16×2 mm

$6.75

KIT QTY: 1

3

IZ · position 3Izzo Water filter Ø8.5×22 mm

$6.19

KIT QTY: 1

4

IZ · position 4Izzo Gicleur / flow restrictor M6×0.75, 0.8 mm

$4.71

5

IZ · position 5Izzo Upper chrome sleeve — Izzo group

$41.14

KIT QTY: 1

6

IZ · position 6Izzo FKM O-ring 0128, 2.62 mm section

$0.53

KIT QTY: 3

7

IZ · position 7Izzo PTFE flat gasket Ø35×30×2 mm

$4.76

8

IZ · position 8Izzo Spring Ø14×45 mm

$3.49

KIT QTY: 1

9

IZ · position 9Izzo Upper E61 inlet valve with gasket, 55 mm

$25.96

10

IZ · position 10Izzo Group gasket — version dependent

—

CONTACT FOR PART

KIT QTY: 1

11

IZ · position 11Izzo camshaft

$33.23

12

IZ · position 12Izzo Complete E61 group

—

CONTACT FOR PART

13

IZ · position 13Izzo Chrome camshaft connector

$47.03

KIT QTY: 2

14

IZ · position 14Izzo EPDM flat gasket 15.5×7.5×4 mm

$2.43

15

IZ · position 15Izzo camshaft bushing, 28 mm

$4.25

16

IZ · position 16Izzo Spring Ø15×25 mm

$4.59

17

IZ · position 17Izzo Chrome gland connection

$25.00

18

IZ · position 18Izzo Chrome cam M8

$45.03

19

IZ · position 19Izzo Lever shaft pin

—

CONTACT FOR PART

20

IZ · position 20Izzo Group lever knob M10

—

CONTACT FOR PART

21

IZ · position 21Izzo Chrome cap M6

$5.94

22

IZ · position 22Izzo Distribution plate / spray nozzle Ø30 mm M10×1

$20.28

KIT QTY: 1

23

IZ FE7Izzo shower screen Ø60 mm

$8.00

KIT QTY: 1

24

IZ FE8Izzo Portafilter gasket 8.5 mm

$9.95

KIT QTY: 1

25

IZ · position 25Izzo Preinfusion outlet valve with gasket, 52.8 mm

$27.84

26

IZ · position 26Izzo Spring Ø14×45 mm

$3.49

27

IZ · position 27Izzo Lower cylinder

—

CONTACT FOR PART

KIT QTY: 1

28

IZ · position 28Izzo Lower E61 outlet valve with gasket

$17.48

29

IZ · position 29Izzo Reinforced outlet spring Ø14.6×34 mm

$7.91

30

IZ · position 30Izzo Outlet distributor

$4.69

KIT QTY: 1

31

IZ · position 31Izzo PTFE flat gasket Ø26×21×2 mm

$3.79

32

IZ · position 32Izzo Lower drain fitting

—

CONTACT FOR PART

33

IZ · position 33Izzo Single portafilter

—

CONTACT FOR PART

34

IZ · position 34Izzo Double portafilter

—

CONTACT FOR PART

35

IZ FE17Izzo 1-cup filter basket, 7 g

$19.00

36

IZ FE18Izzo 2-cup filter basket, 14 g

$19.00

37

IZ · position 37Izzo Blind filter Ø58 mm

$12.00

CAFFETECH TECHNICAL VIEW

Bezzera Mitica E61

Official Bezzera OEM Table 5 · Mitica document 9942050.04 Rev.02

CAFFETECH

Bezzera Mitica original exploded E61 group-head schematic showing 39 numbered positions

Bezzera Mitica factory Table 5 · 39 positionsOriginal Bezzera OEM PDF

100%

PARTS & REBUILD

Bezzera Mitica E61 Parts

Search by schematic position, Bezzera OEM number or part name. All 39 BE-prefixed Bezzera products are active, priced, and linked below.

1

BE 7479952Bezzera Upper assembly plug

$8.82

KIT QTY: 1

2

BE 7479953Bezzera Gasket TF 22×17×2

$1.16

KIT QTY: 1

3

BE 7479954Bezzera Stainless filter Ø8.5×22

$6.19

KIT QTY: 1

4

BE 7479955Bezzera Injector M6×0.75, Ø0.7 mm

$4.38

5

BE 7479956Bezzera Upper sleeve assembly

$41.14

6

BE 7479933Bezzera Upper sleeve injector Ø0.7

$4.38

KIT QTY: 1

7

BE 7479934Bezzera Viton O-ring 128

$0.53

KIT QTY: 3

8

BE 7479935Bezzera PTFE gasket Ø35×30×2

$4.76

9

BE 7479936Bezzera Delivery valve spring

$3.49

KIT QTY: 1

10

BE 7479937Bezzera Delivery valve assembly

$25.96

11

BE 7479940Bezzera Delivery group body

$280.49

12

BE 7493011Bezzera Insulating spacer

$1.95

13

BE 5267013Bezzera Tie rod M8×31 ASTM A193

$4.64

14

BE 7812607Bezzera Nut M8 UNI 5587 ASTM A194

$2.95

15

BE 7479938Bezzera PTFE gasket Ø10×6×1

$2.70

16

BE 7479939Bezzera Screw M6×8

$1.39

17

BE 7479951Bezzera Cam stop pin

$3.95

KIT QTY: 1

18

BE 7479950Bezzera Cam shaft

$33.23

19

BE 7479949Bezzera Cam flange assembly

$47.03

20

BE 7371511.01Bezzera Lever knob

$5.95

21

BE 7479931Bezzera Delivery lever

$89.00

22

BE 7479947Bezzera Washer Ø8

$2.95

23

BE 7479948Bezzera Cap Ø15×M6

$5.94

KIT QTY: 1

24

BE 7479946Bezzera Valve assembly

$27.84

25

BE 7479942Bezzera Spring guide bushing

$5.24

26

BE 7479957Bezzera Lower sleeve assembly

$49.89

KIT QTY: 1

27

BE 7479943Bezzera Relief valve assembly

$17.48

28

BE 7479944Bezzera Drain spring

$7.91

29

BE 7479945Bezzera Jet-breaker bushing Ø15×6

$4.69

KIT QTY: 1

30

BE 7479960Bezzera PTFE gasket Ø26×21×2

$3.79

31

BE 7479961Bezzera Group bottom fitting

$14.01

32

BE 7479941Bezzera Sprayer Ø30

$20.28

KIT QTY: 1

33

BE 5471022Bezzera Shower filter

$8.00

KIT QTY: 1

34

BE 5493039Bezzera Undercup gasket

$9.95

35

BE 7479967Bezzera Cam flange

$47.03

KIT QTY: 2

36

BE 7479968Bezzera Washer EP709 15.5×7.5×4

$2.43

37

BE 7479969Bezzera Bushing

$4.25

38

BE 7479970Bezzera Spring

$4.59

39

BE 7479971Bezzera Chromed plug

$25.00

CAFFETECH TECHNICAL VIEW

Quick Mill E61

Traditional lever group · compare your existing parts

Quick Mill traditional E61 group exploded reference with 37 numbered positions

Quick Mill E61 reference · 37 listed positions

100%

PARTS & REBUILD

Quick Mill E61 Parts

Traditional manual E61 groups. Confirm your model and group version before ordering. Compatible replacement parts are linked below.

1

QM TAP3136184Upper group cap

—

CONTACT FOR PART

KIT QTY: 1

2

QM GUATF22172Upper PTFE gasket · 22 × 17 × 2 mm

—

KIT QTY: 1

3

QM FIL8.522Gicleur filter screen · Ø8.5 × 22 mm

—

KIT QTY: 1

4

QM INIE707Group jet · 0.7 mm

—

5

QM CAN3140694Mushroom assembly

—

CONTACT FOR PART

KIT QTY: 1

6

QM OR-128VMushroom O-ring

—

KIT QTY: 3

7

QM GUATF35302Principal PTFE gasket · 35 × 30 × 2 mm

—

8

QM MOLLA-AUpper brew-valve spring

—

KIT QTY: 1

9

QM ASS395227Upper brew valve assembly

—

10

QM IS0970Group mounting gasket · 80 × 70 × 2 mm

—

KIT QTY: 1

11

QM CAM824A1Camshaft / lever cam

—

12

QM FL-56LCRGroup body

—

CONTACT FOR PART

13

QM POR3140784Cam chamber

—

CONTACT FOR PART

KIT QTY: 2

14

QM W547Camshaft sealing gasket

—

15

QM BUSPREGOMCam gasket bushing

—

16

QM MOLLA-ECam bushing spring

—

CONTACT FOR PART

17

QM TAPPRGOCRCam chamber bushing nut

—

CONTACT FOR PART

18

QM RC-561CRLever base

—

CONTACT FOR PART

19

QM AST1057CRLever rod

—

CONTACT FOR PART

20

QMLever grip · confirm manufacturer reference

—

CONTACT FOR PART

21

QM CAL615CRLever locking screw

—

22

QM SPR8F400Group diffuser

—

KIT QTY: 1

23

QM AC0970FSShower screen · Ø60 mm

—

KIT QTY: 1

24

QM GO0970GSPortafilter gasket · 73 × 57 × 8 mm

—

KIT QTY: 1

25

QM ASS395228Pre-infusion valve assembly

—

26

QM MOLLA-APre-infusion valve spring

—

27

QM CAN304CRPre-infusion / discharge chamber

—

CONTACT FOR PART

KIT QTY: 1

28

QM VAL2PZTTRLower drain valve assembly

—

29

QM MOL311420R1Lower drain-valve spring

—

30

QM FRA156Drain diffuser

—

KIT QTY: 1

31

QM GUATF26212Lower PTFE gasket · 26 × 21 × 2 mm

—

32

QM RAC2626CRLower drain chamber

—

CONTACT FOR PART

33

QM OT0970PF1Single-spout portafilter

—

CONTACT FOR PART

34

QM OT0970PF2Double-spout portafilter

—

CONTACT FOR PART

35

QM AC0970FI1Single filter basket · 7 g

—

CONTACT FOR PART

36

QM AC0970FI2Double filter basket · 14 g

—

CONTACT FOR PART

37

QM AC0970FCBlind filter / backflush basket

—

NOT SURE WHICH E61 YOU HAVE?

CaffeTech can help identify it.

Send us your machine model, approximate year, and a photo of the grouphead.

ASK THE PARTS DEPARTMENT

Compare Products


Price
SKU
Rating
Discount
Vendor
Tags
Weight
Stock
Short Description

Compare Products

Heading
Heading

Description here

Cart

Your cart is empty

Unfortunately we could not find any products in your cart.

Continue shopping
