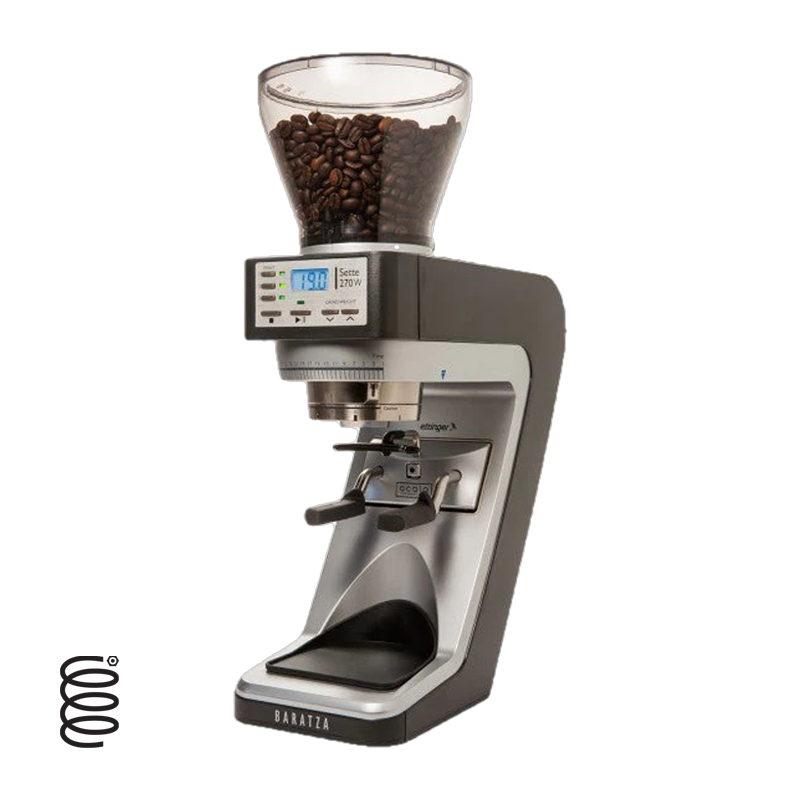

Barataza Sette 270Wi Grinder

Baratza Sette 270Wi Grinder

CaffeTech Canada presents The Sette Series which  debuts a revolutionary new grinding technology. Designed and perfected in Liechtenstein over a period of 8 years, this technology sets a new standard in simplicity, efficiency, and durability. This new mechanism has the outer burr rotate and the inner burr is fixed a truly revolutionary design. The design of this mechanism doubles the efficiency of similarly sized grinders. Coffee passes straight through the grinder, vertically, and drops directly into the grounds bin or your portafilter.

The Sette has a macro/micro adjust for grind size, as well as 3 programmable settings for dosing. These combined features offer the user incredible repeatability. A unique, built-in, convertible device holder allows the user to grind directly into a portafilter, the supplied grounds bin, or most of the popular brewing devices. This 270Wi grinder was designed using the weighing technology of Acaia, giving precise and accurate weight-based dosing, with the revolutionary ability to grind by weight directly into a portafilter. This is a breakthrough in grinding technology! In line with Baratza 's focus on process improvement and quality, and our ongoing efforts to improve the functionality of our grinders, we have made significant improvements with the weight accuracy and repeatability of the Sette 270W. The updated grinder is called the Sette 270Wi.

Contact CaffeTech Canada for more sales information on The Barataza Sette 270Wi Grinder and any other Baratza Grinders.

270Wi

• The "i" in 270Wi stands for intelligence - the grinder now quickly calculates and predicts the stop point when you change your grind setting, beans, or dose weight. This eliminates the need to adjust the offset.
• The new 270Wi maximizes its built-in Acaia high precision scale by filtering unpredicted vibrations that could affect dosing accuracy, such as door closures, footsteps, unsteady surfaces.
• A "quick burst" feature allows you to add small increments of coffee to your final dose after the grinder has stopped.
• In the event of a software update, it can be installed wirelessly via integrated Bluetooth using an Apple phone or tablet.
• Recent versions of the Sette 270W are upward compatible to the Sette 270Wi, by purchasing and installing the new 270Wi Display panel and then updating the software via an Acaia App.

The Sette Series has, at its core, a revolutionary grinding mechanism that produces game-changing performance. Key aspects of this innovative mechanism include:

1. Straight-thru vertical transports and grinding of the beans (highly efficient and results in minimal residual coffee in the system).
2. Rotation of the outer ring burr (with twice the surface area of the cone burr) along with proprietary tooth geometry, produces grinding thru-put that is two to three times that of others in its class.
3. Proprietary gear box (planetary + crown gear) that maximizes efficiency of torque transfer, resulting in lower power consumption and much less heat.
4. Powerful DC motor for maximum starting torque and efficiency, resulting in cooler operation.

• 270WI SPECIFIC

  • The "i" in 270Wi stands for intelligence - the grinder now quickly calculates and predicts the stop point when you change your grind setting, beans, or dose weight. This eliminates the need to adjust the offset.
  • The new 270Wi maximizes its built-in Acaia high precision scale by filtering unpredicted vibrations that could affect dosing accuracy, such as door closures, footsteps, unsteady surfaces.
  • A "quick burst" feature allows you to add small increments of coffee to your final dose after the grinder has stopped.
  • In the event of a software update, it can be installed wirelessly via the integrated Bluetooth using Apple phone or tablet.
  • Recent versions of the Sette 270W are upward compatible to the Sette 270Wi, by purchasing and installing the new 270Wi Display panel and then updating the software via an Acaia App.

• GRINDING MECHANISM -The Sette Series has, at its core, a revolutionary grinding mechanism that produces game-changing performance. Key aspects of this innovative mechanism include:

  • Straight-thru vertical grinding of the beans (highly efficient and results in minimal residual coffee in the system).
  • Rotation of the outer ring burr (with twice the surface area of the cone burr) along with proprietary tooth geometry, produces grinding thru-put that is two to three times that of others in its class.
  • Proprietary gear box (planetary + crown gear) that maximizes efficiency of torque transfer, resulting in lower power consumption and much less heat.
  • Powerful DC motor for maximum starting torque and efficiency, resulting in cooler operation.

• BURRS & BREWING METHODS - Manufactured by Etzinger in Liechtenstein, the Sette 270Wi is built with 40mm conical S1 burrs, which produce weight-based espresso grind, as well as grinding for manual brewing requiring a finer grind range (e.g.weight-based Aeropress and Hario V60). They grind coffee at 3.5g to 5.5 g/sec. depending on the roast and the setting. The burrs are durable and will remain sharp for many years. The clever design of the Sette Series burr assembly offers you, the user, the ability to exchange the cone burr in less than a minute with no tools and no recalibration. Check this video from about 30 seconds in to see how easy it is to make the switch.

• CONVERTIBLE DEVICE HOLDER & GROUNDS BIN - A built-in convertible holder, unique to the Sette Series, allows you to grind directly into your portafilter, the supplied grounds bin, or most of the popular brewing devices (V60, Clever, Kalita, etc.). The rubber sleeves on the arms are fully rotational allowing you the option to position them in a way that best suits the tool/brew-method you are using. The arms can accommodate portafilters from sizes 49mm to 58mm and the holder includes an integrated hook for stability. The Sette’s grounds bin is made from an anti-static plastic, with a molded spout for easy pouring into your preferred brewing device. It has a usable capacity of 160g (Med Roast).

• ACAIA - (WEIGHT-BASED DOSING) - This grinder was designed with a built-in scale using the weighing technology of Acaia, giving precise and accurate weight-based dosing, and a 10th of a gram sensitivity. The 270Wi has the revolutionary ability to grind by weight directly into a portafilter - a breakthrough in grinding technology! This unique grinder design responds to the Specialty Coffee user trend of using specific weight based recipes for coffee preparation.

• HOPPER - The hopper holds approximately 300-400g of coffee. An innovative bean shutoff feature in the collar permits no-mess, no-fuss hopper removal for changing out beans.

• DIGITAL CONTROL PANEL - A user-friendly front mounted control panel has an easy to read backlit LED display. Three programmable buttons allow for grind weight setting within 0.1 gram. Simply press the start button and the Sette automatically delivers precise dosing.

• GRIND ADJUSTMENT - The Sette has a macro adjust of 30 steps, grinding from espresso to manual brew. A step-less micro adjust with 9 indicators, allows the user to easily dial in a perfect espresso. The macro/micro mechanism is directly connected to the cone burr resulting in immediate and true grind adjustment.

• DIMENSIONS - The Sette Series is designed with a small footprint (like our other models) ideal for home kitchens, offices, brew bars and catering.

• CLEANING - The cone burr is easily removable with no tools, making cleaning very easy.

• MINIMAL RETENTION - To maximize freshness, the Sette minimizes the ground coffee left in the grinder.

• MOTOR-A powerful, high torque DC motor drives the Sette. The circuitry is equipped with an automatically resetting, thermal cutoff switch.

Accessories: - (which may be purchased separately)

• HOPPER EXTENDER- An extension that can add 275g of capacity to the existing bean hopper. Several extenders can be added to get to the capacity you need.

  S2 BURR - We offer a second burr assembly - the S2 burr which provides a broader grind range for a different brewing experience.

Quick Start Guide

Exploded View + Parts List

Baratza Grinder Comparison Chart

BARATZA SETTE 270i - SHIPS FROM EDMONTON- ALBERTA CANADA  FROM CAFFETECH CANADA -

SERVICE AND WARRANTY SUPPLIED BY BARATZA
