La Marzocco GB5 X Auto Volumetric X-AV Espresso Machine 2 GROUPS

$33,942.00

Questions? Call Us Toll Free.

1 780 - 414 - 1200

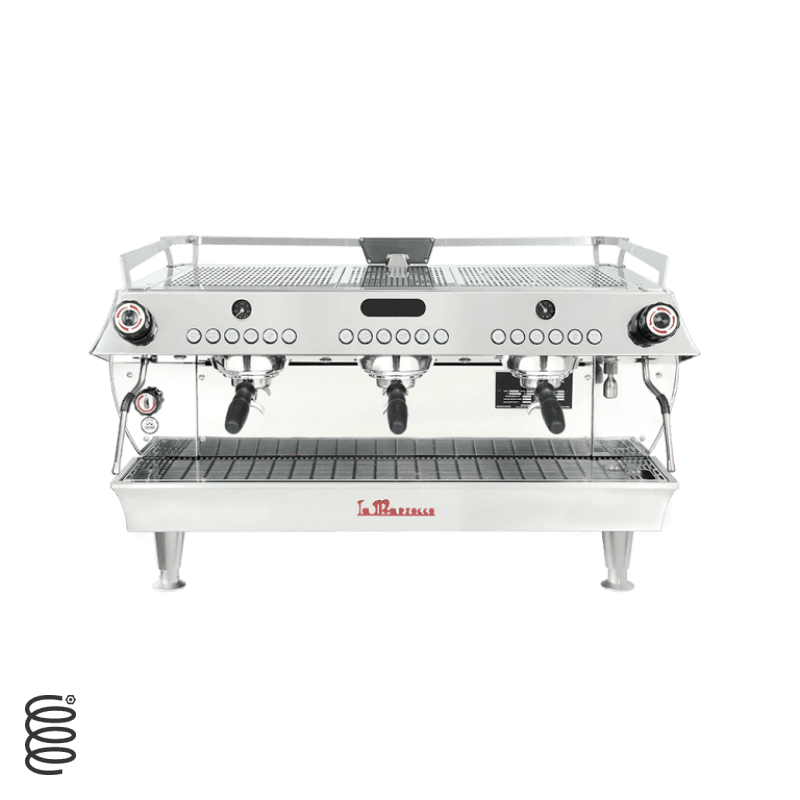

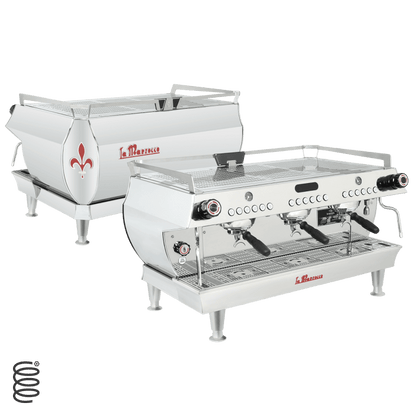

La Marzocco GB5 X Auto Volumetric (X-AV) Espresso Machine

The La Marzocco GB5 X AV is the New latest GB5 model from La Marzocco featuring Volumetric control at the groups but No Auto Brew Ratio.

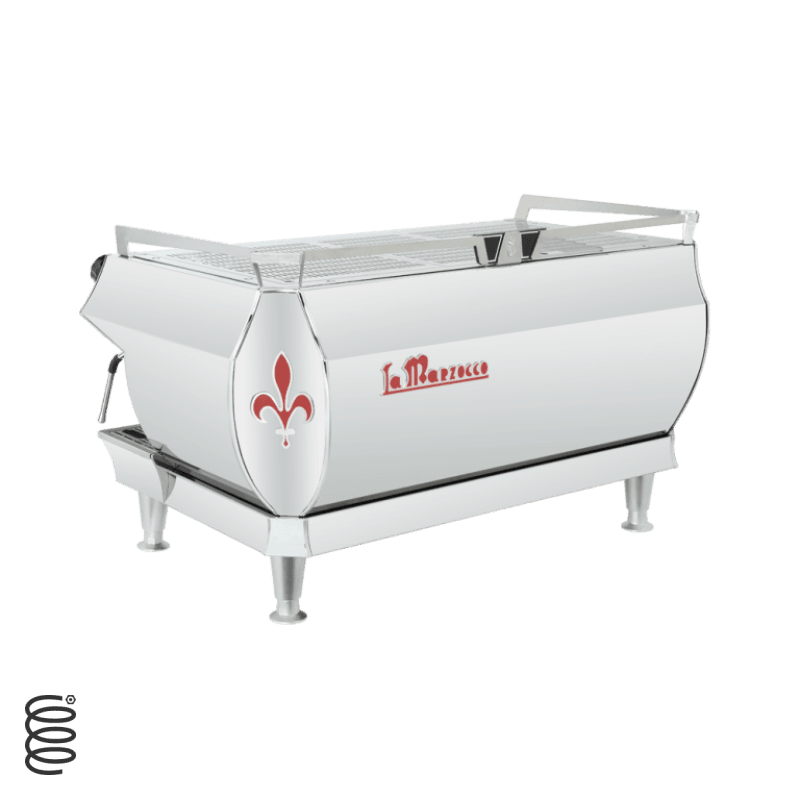

Equipped with proprietary La Marzocco electronics and advanced temperature stability, the GB5 S and X Models combines classical European design with cutting edge performance. The Original GB5 machine has been modernized since its original release in 2005 and is an elegant companion to any coffee bar. With the S Version - Two red lilies on the side shields recall the company’s Florentine heritage, while the X Versions work off the White accents on the reverse classic  Stainless Steel construction of the GB5 heritage styling.   Booth Versions offer partially exposed groups and a streamlined barista working experience. The machine provides the barista control over boiler temperature, brewing volume, hot water tap dose, automatic cleaning cycles and more to keep high quality coffee flowing even during the busiest hours.

The gracious lines and harmonious curves of the GB5 S and X models speak to the La Marzocco heritage of design and intention. The understated side shields, elegant Florentine lily, subtle insignia of La Marzocco on the cup rail and more combine to give this machine the feel of an heirloom built to stand the test of time.

The LaMarzocco GB5S Line up is Offered by CaffeTech Canada in 3 Styles:
1. The EE known as the Semi Automatic Version.
2. The ABR known as the Auto Brew Ratio which allows the End user to manipulate Flow at the group care of a cleverly appointed paddle on the respective groups.
3. The AV Version which introduced Volumetric dosing with programmability directly from the Control board through Cigar Flow meters.

The LaMarzocco GB5X Line up is Offered by CaffeTech Canada in 3 Styles:
1. The ABR known as the Auto Brew Ratio which allows the End user to manipulate Flow at the group care of a cleverly appointed paddle on the respective groups.
2. The AV Version which introduced Volumetric dosing with programmability directly from the Control board through Cigar Flow meters.
The LaMarzocco GB5 S and X versions are offered Offered by CaffeTech Canada in 3 Configurations; 2, 3 &4 Groups.

Hand-made in Florence, Italy.

Dual boilers
Separate boilers optimize espresso brewing and steam production.

Dual PID (coffee and steam)
Allows you to electronically control coffee and steam boiler temperature.

Insulated boilers
Reduce energy consumption while contributing to temperature stability.

Piero group caps – av, abr
Re-engineered internal water path and flow-meter positioning that increase temperature stability.

Saturated groups
Ensure unsurpassed thermal stability, shot after shot.

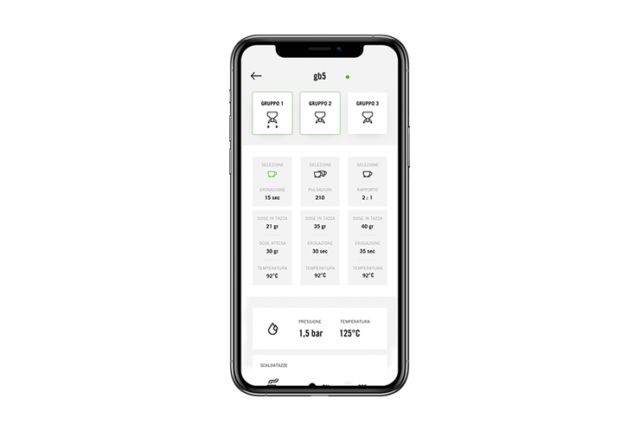

Pro app compatible
The electronic board allows connectivity with the La Marzocco Pro App.

Pro touch steam wands – special order
High-performing steam wands that are cool to the touch.

Digital display
Intuitive programming makes it easy to adjust machine parameters.

Programmable doses – av, abr
Auto-volumetrics ensure repeatability and consistency in high-volume settings.

Integrated scales – abr only
Precision scales built in the drip tray with the Drip Prediction technology provide a new level of consistency.

24v electronics
New generation of electronics for improved reliability and machine diagnostics.

Easy rebuild steam valve
Engineered so the valve can be serviced directly from the front of the machine without needed to be removed.

USB
Making it possible to update the firmware.

Dimmable barista lights – av, abr
3-stage customizable intensity led lights for Eco, On and Brewing modes.

Eco-mode
Can be programmed to enter standby mode, improving energy efficiency.

Cup warmer – special order
Maintain espresso and cappuccino cups evenly heated at a proper temperature.

High legs – special order
Makes it easier to access beneath the machine.

Personalized colours – special order
Customizable colours based on the RAL colour system, on request.

specifications 2grp 3grp 4grp
Height (in) 21.4 21.4 21.4
Width (in) 29 38.5 48
Depth (in) 25.2 25.2 25.2
Weight (lbs) 150 171 198
Voltage (VAC, phase, Hz) 208-240, 1, 60 208-240, 1, 60 208-240, 1, 60
Amperage (A) 30 50 50
Element Wattage (W) 5200 6800 8300
Coffee Boiler (liters) 3.4 5 3.4 x2
Steam Boiler (liters) 7 11 15
Certifications UL-197, NSF-8, CAN/CSA-C22.2 No. 109
