WILBUR CURTIS

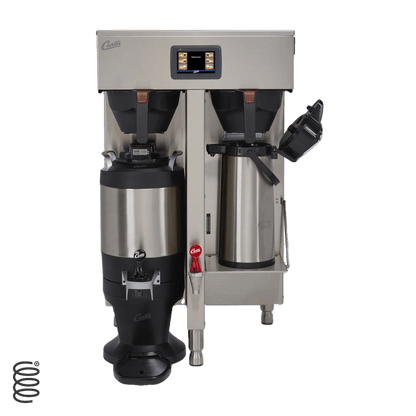

G4TP2T10A3500 G4 Twin 1.5 Gal. Coffee Brewer with Shelf

$7,447.00
SALE ENDS IN
d
h
m
s

G4TP2S10A3500 - G4TP2S G4 Single 1.5 Gallon Coffee Brewer with Shelf

Great for higher volume coffee shops and designed to brew directly into the 1.0 Gallon thermal pot without removing the locking stand. The added feature of this brewer is that shorter pots can be adapted to the brewing program for decaf and/or single origin coffees. This brewer makes your cafe' or coffee shop operation flow more smooth yet provide the features that have established the Wilbur Curtis G4 series as a staple in the coffee industry.

Features
  • Generation Four (G4) Digital Control Module – Large, 4.3" touch screen. Icon-driven interface streamlines operation.
  • On-Screen Instructions – Provides fast, intuitive training; reduces service calls.
  • Built-in Self Diagnostic System – Includes real-time feedback of the brewing process and energy saving mode.
  • Advanced Scale Warning System™ – Continually monitors and advises tank probe condition.
  • Gold Cup Series™ – Digital Control Module provides precise control over all aspects of brewing: time, temperature, volume plus specialty coffee needs from pre-infusion to pulse- brewing to water bypass.
  • Pre-set, one-touch Global Recipes – Based on coffee type, grind and weight. Simplifies profile setting for gourmet results every time.
  • Industry’s most effective mineral tolerant design Patented fast-wetting AFS Sprayhead Non-metallic water level probe Non-immersed water temperature sensor.
  • Encapsulated Control Board – Protects against steam, water and impact.
  • Stainless-steel ThermoPRO™ vacuum-sealed servers keep coffee fresh, hot and flavorful.
  • Single unit is field selectable for One, Two or Three Batch brewing.
  • Enhanced Recovery Circuitry – boosts performance on 220V/single phase models.
  • All features Standard from Curtis… extra from others.
  • *Dispenser sold separately.
Specifications
Height 35.13"
Width 20.13"
Depth 20.75"
Phase 1 PH
Volts 220V
Amps 23.0/34.5A
Heat Configuration 3 x 2500W
Wire 3W+G
Watts 5100/7600W
Hertz 50/60 Hz
Connector 3/8" Flare
Pressure 20 - 90 psi
Min. Flow Rate 2.0 GPM
Tank Volume 6.9 Gal.
Weight 105.00 lbs
Cube 22.00 cuft

Resources

Brochure

User Guide

Description

G4TP2S10A3500 - G4TP2S G4 Single 1.5 Gallon Coffee Brewer with Shelf

Great for higher volume coffee shops and designed to brew directly into the 1.0 Gallon thermal pot without removing the locking stand. The added feature of this brewer is that shorter pots can be adapted to the brewing program for decaf and/or single origin coffees. This brewer makes your cafe' or coffee shop operation flow more smooth yet provide the features that have established the Wilbur Curtis G4 series as a staple in the coffee industry.
Features
  • Generation Four (G4) Digital Control Module – Large, 4.3" touch screen. Icon-driven interface streamlines operation.
  • On-Screen Instructions – Provides fast, intuitive training; reduces service calls.
  • Built-in Self Diagnostic System – Includes real-time feedback of the brewing process and energy saving mode.
  • Advanced Scale Warning System™ – Continually monitors and advises tank probe condition.
  • Gold Cup Series™ – Digital Control Module provides precise control over all aspects of brewing: time, temperature, volume plus specialty coffee needs from pre-infusion to pulse- brewing to water bypass.
  • Pre-set, one-touch Global Recipes – Based on coffee type, grind and weight. Simplifies profile setting for gourmet results every time.
  • Industry’s most effective mineral tolerant design Patented fast-wetting AFS Sprayhead Non-metallic water level probe Non-immersed water temperature sensor.
  • Encapsulated Control Board – Protects against steam, water and impact.
  • Stainless-steel ThermoPRO™ vacuum-sealed servers keep coffee fresh, hot and flavorful.
  • Single unit is field selectable for One, Two or Three Batch brewing.
  • Enhanced Recovery Circuitry – boosts performance on 220V/single phase models.
  • All features Standard from Curtis… extra from others.
  • *Dispenser sold separately.
Specifications
Height 35.13"
Width 20.13"
Depth 20.75"
Phase 1 PH
Volts 220V
Amps 23.0/34.5A
Heat Configuration 3 x 2500W
Wire 3W+G
Watts 5100/7600W
Hertz 50/60 Hz
Connector 3/8" Flare
Pressure 20 - 90 psi
Min. Flow Rate 2.0 GPM
Tank Volume 6.9 Gal.
Weight 105.00 lbs
Cube 22.00 cuft
